Air Valves

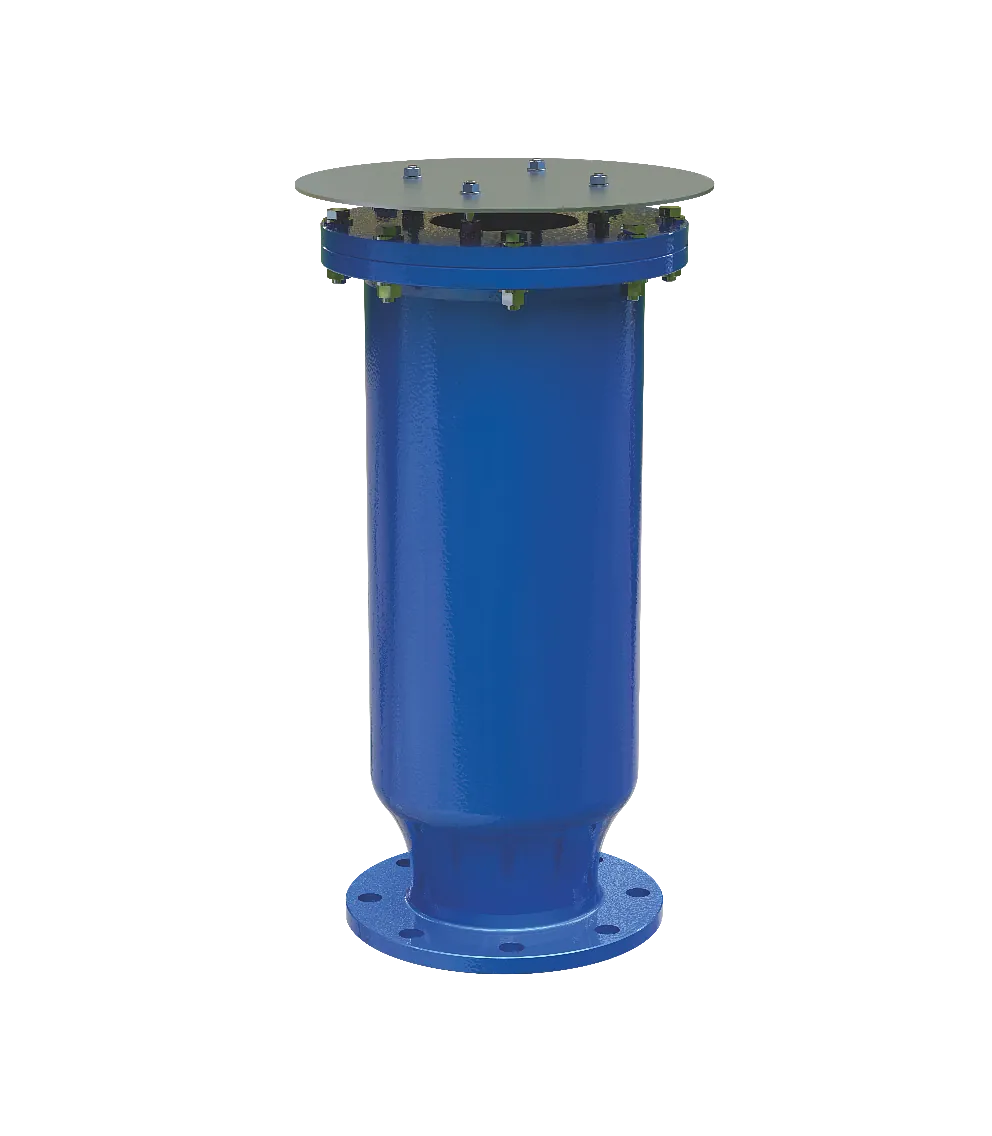

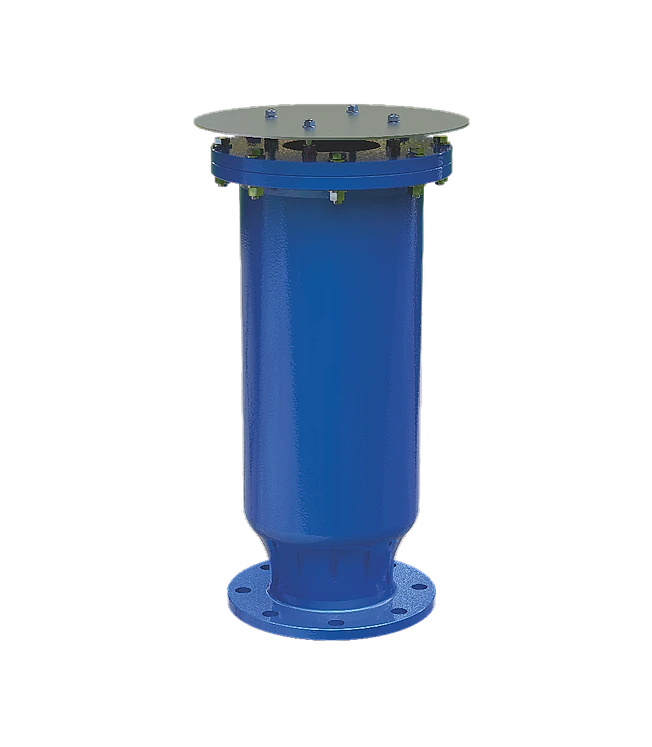

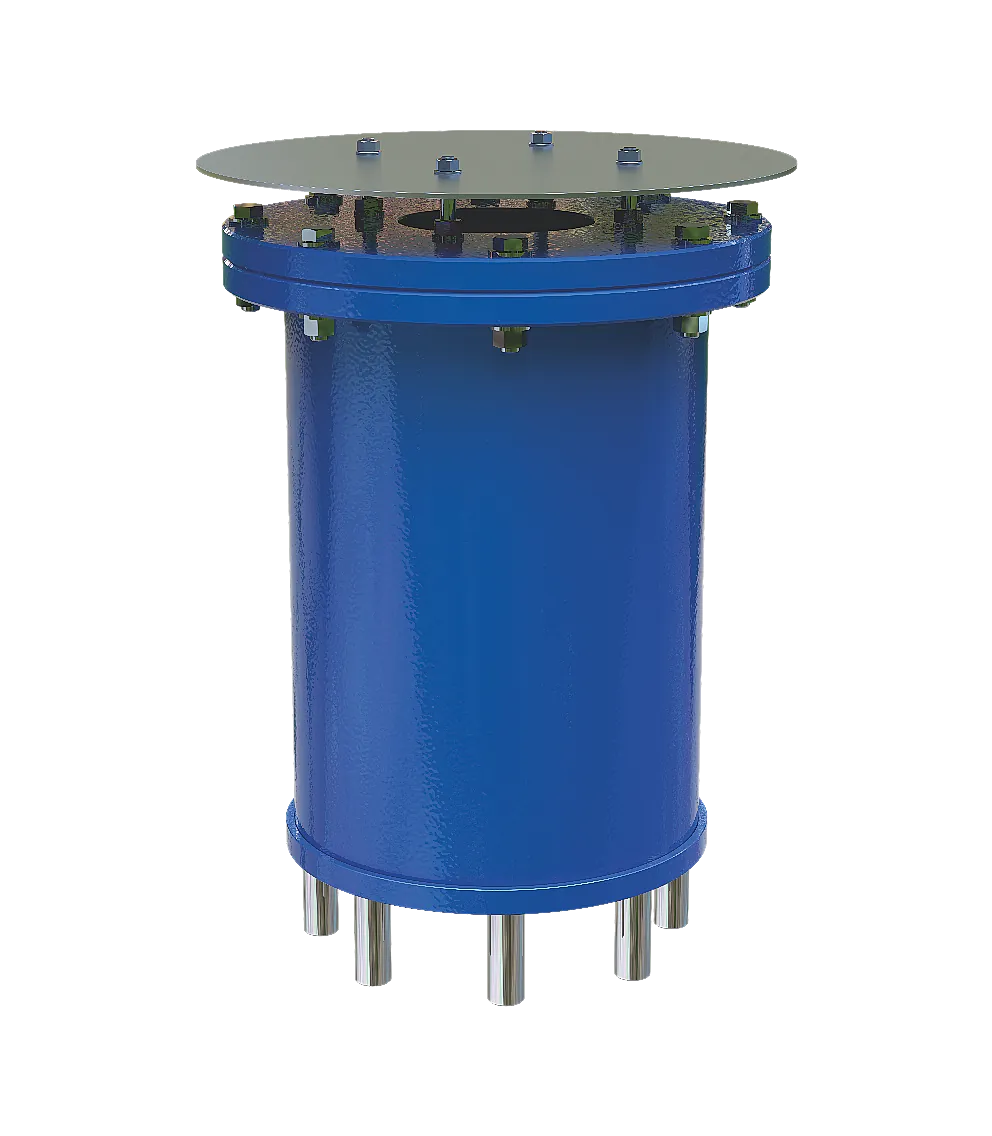

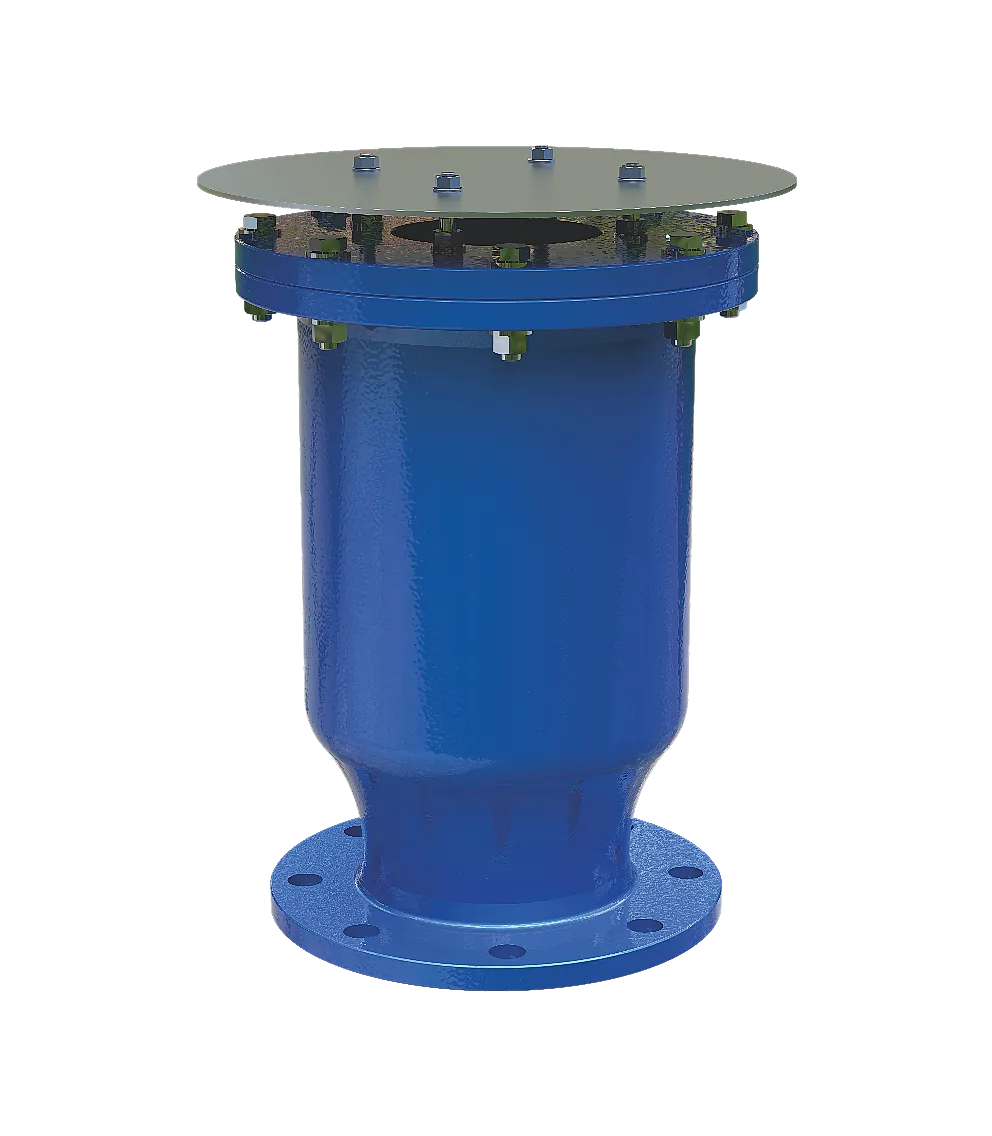

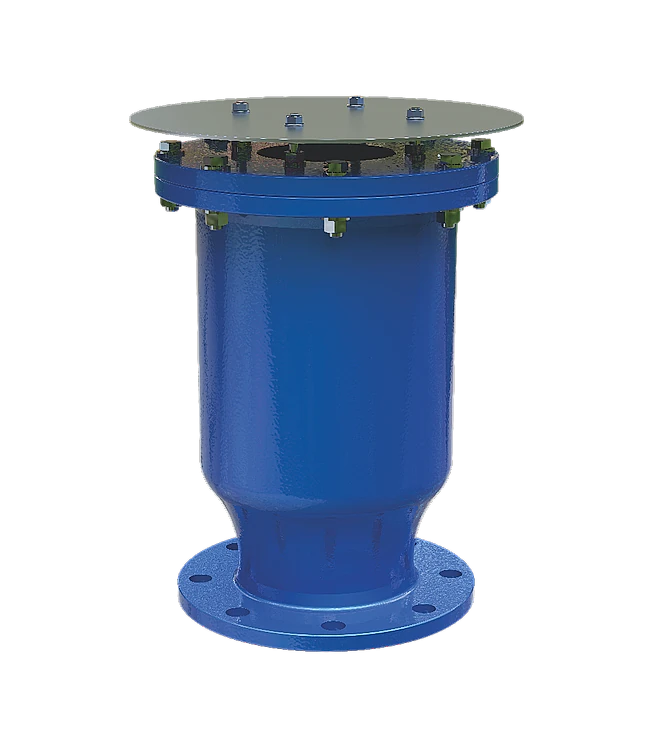

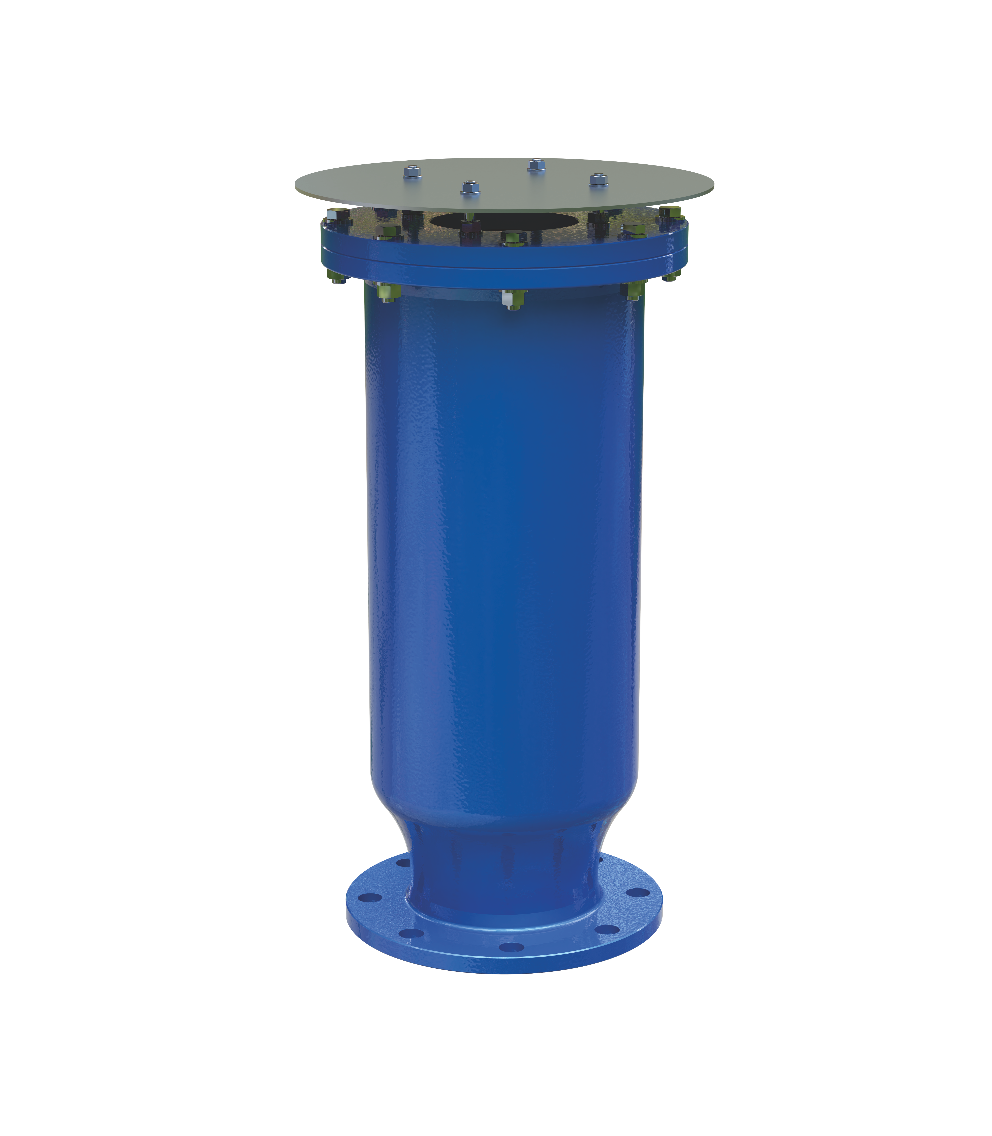

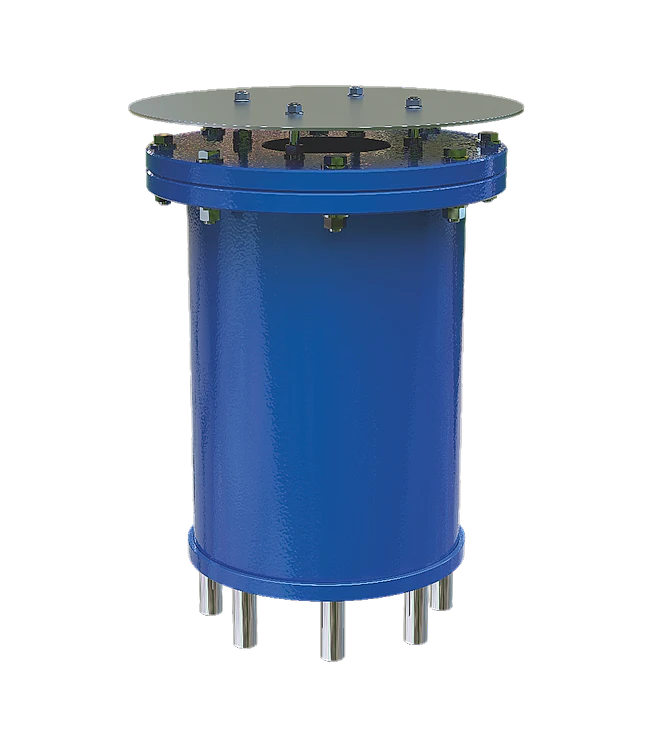

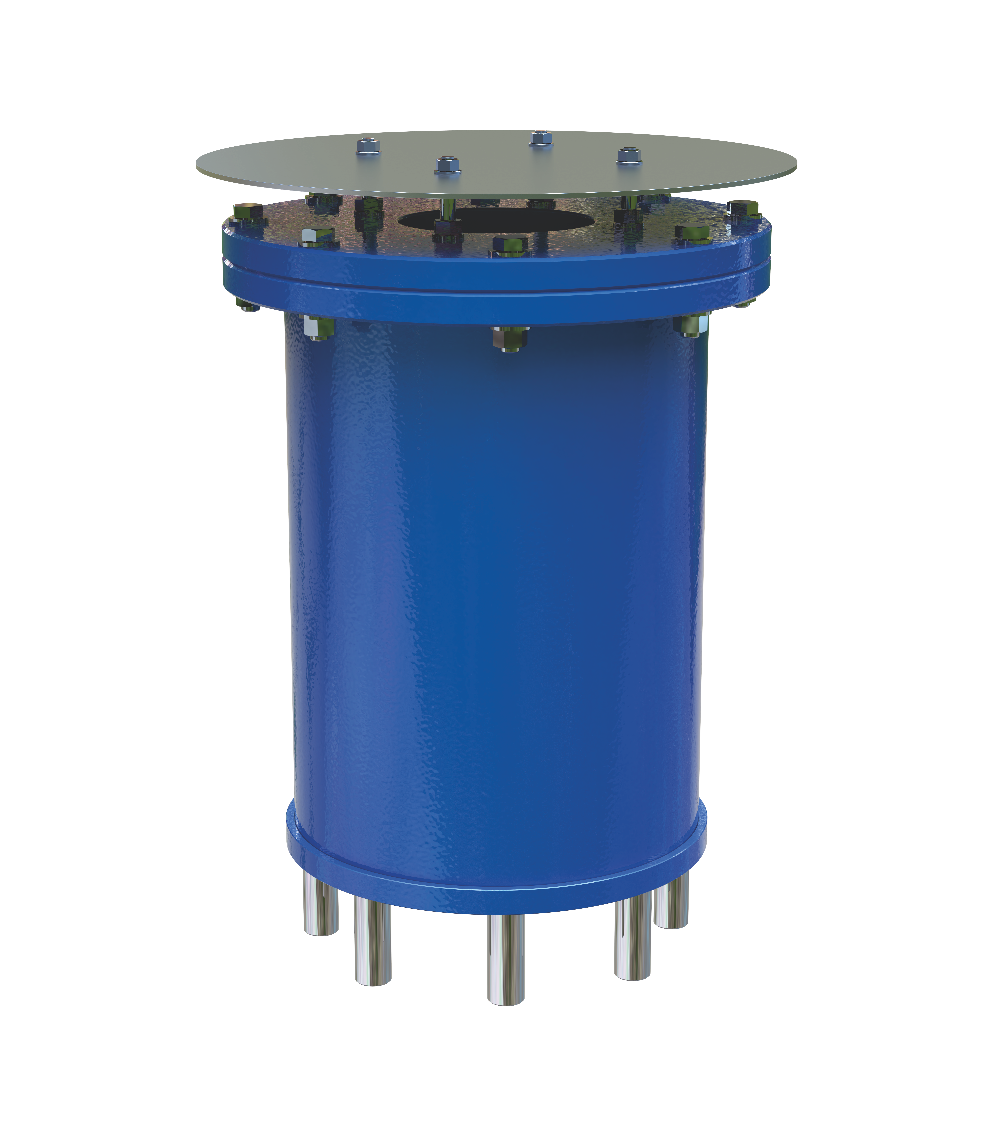

The AVM Compact Air Valve is a computer-optimised, streamlined design for utmost performance, reliability and safety. Correct performance can be critical for air valves, and failure may result in serious harm. AVM’s air valves have been designed and tested for optimal and safe performance. It is designed for various applications, such as water, industry, desalination etc., and exceed the requirements of EN 1074.
Specifications:
Size range: DN 25 - DN 400
Working pressure: PN 10 - PN 64
Design standards: EN 1074
Medium: Water, Sewage, Saline Water,
Industry
Features:
- Compact and lightweight design
- Three functions as standard:
- Vacuum breaking
- Air discharge under low differential pressure
- Air discharge under high differential pressure. This is critical!
- Option for surge arrestor
- Choice of materials:
- Ductile iron
- Steel (welded)
- Stainless steel (welded)
- Duplex/Super-Duplex (welded)
- Solid PE cylinders that never deform. Deformation can an issue with balls, resulting in sealing issues.
- Powder epoxy coating with drinking water certificate (for Ductile iron and Steel only)
