Eccentric Plug Valves

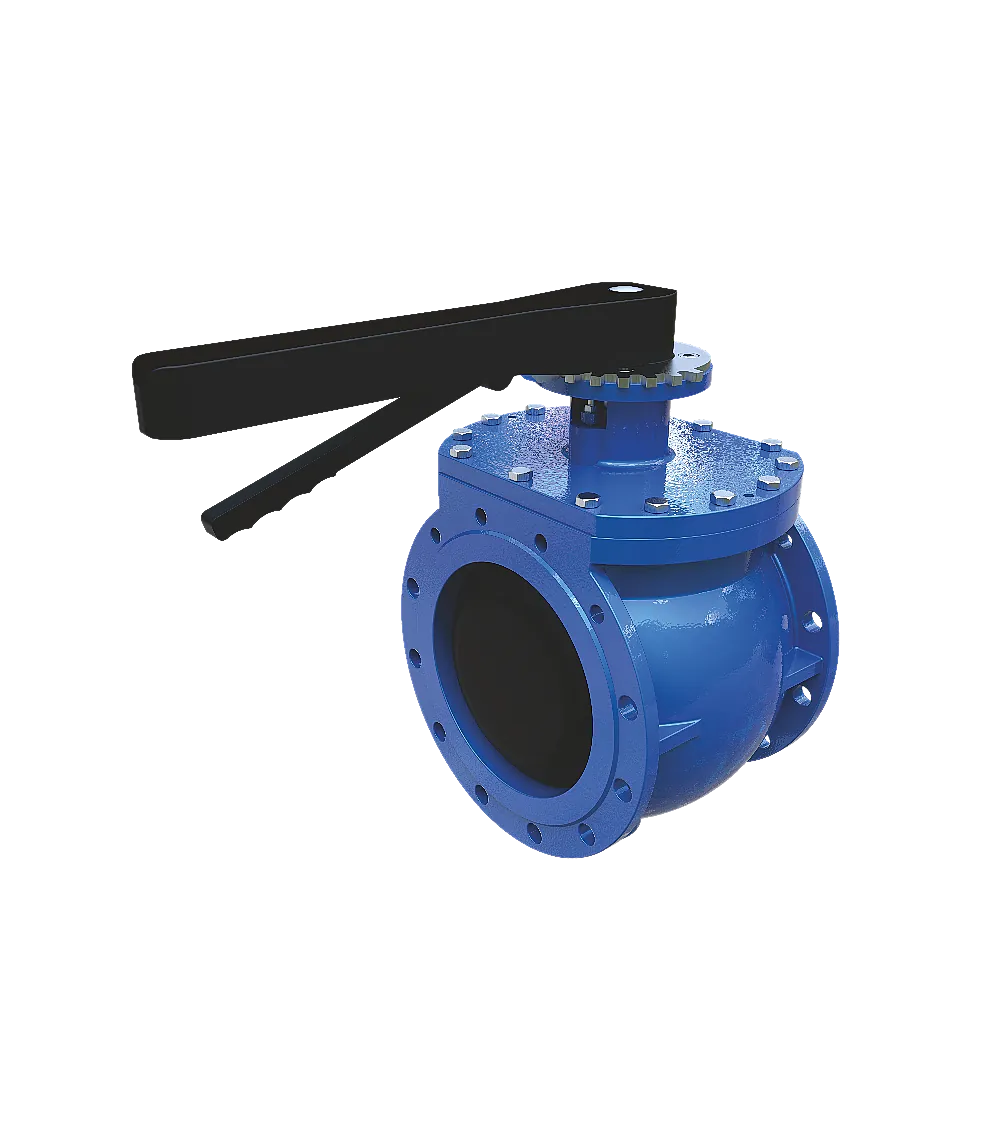

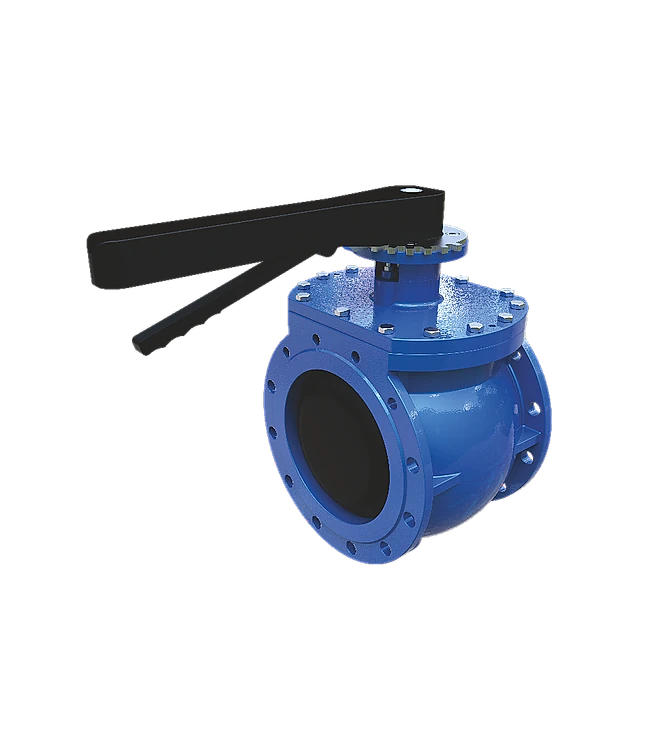

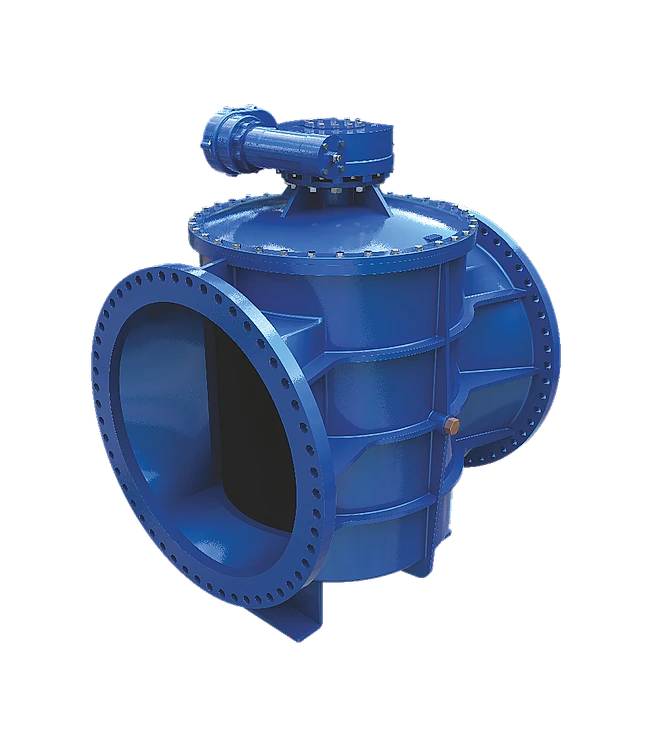

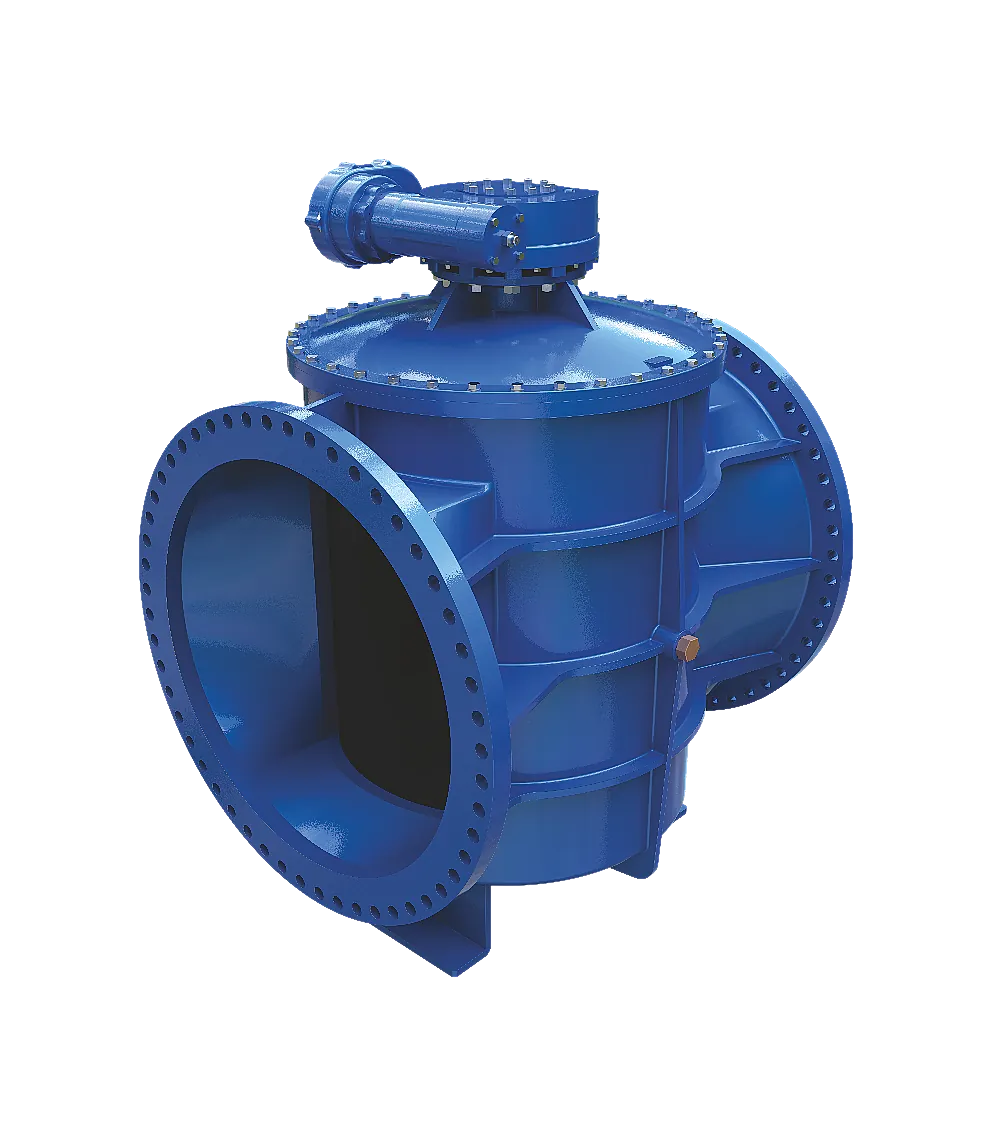

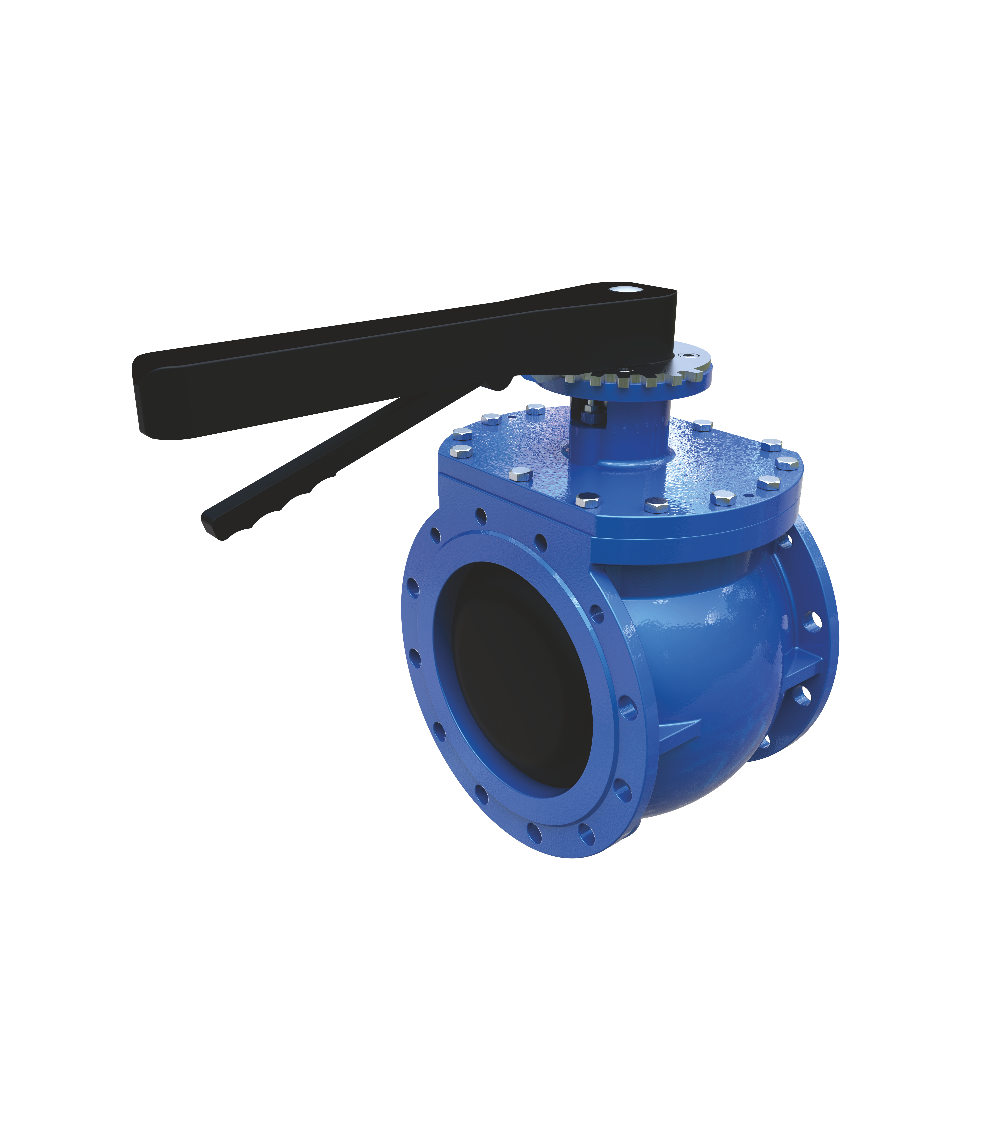

The AVM Double Eccentric Plug Valve is a computer-optimised streamlined design for low head loss. It is designed for the sewage, slurry and sludgy industry, but also suitable for water, air and gas applications.
Specifications
Size Range: DN 50 - DN 2000
Working pressure: PN 10 - PN 25
Design standards: AWWA C517
Medium: Sewage, Slurry, Water, Air/Gas
Features
- Vulcanized Plug with NBR or EPDM rubber
- Low head-loss
- Low torque requirements
- Weld-on overlay stainless steel body seat
- Industry leading shaft/bearing system
- Reliable shaft sealing
- Bronze thrust bearings support the plug weight and provides exact centring
- Can be used for flow regulation to certain limitations
- Zero leakage class A to EN 12266
- Flanged ends to EN 1092-2 PN 10 - PN 25 or ANSI B16.5 Class 125 and 250
- Zero leakage Class A to EN 12266
- Can be used for regulation up to certain limitations
- Reliable shaft sealing system
- Bronze thrust bearings supporting the plug weight
- Powder epoxy coating with drinking water certificate
