Resilient Seated Gate Valves

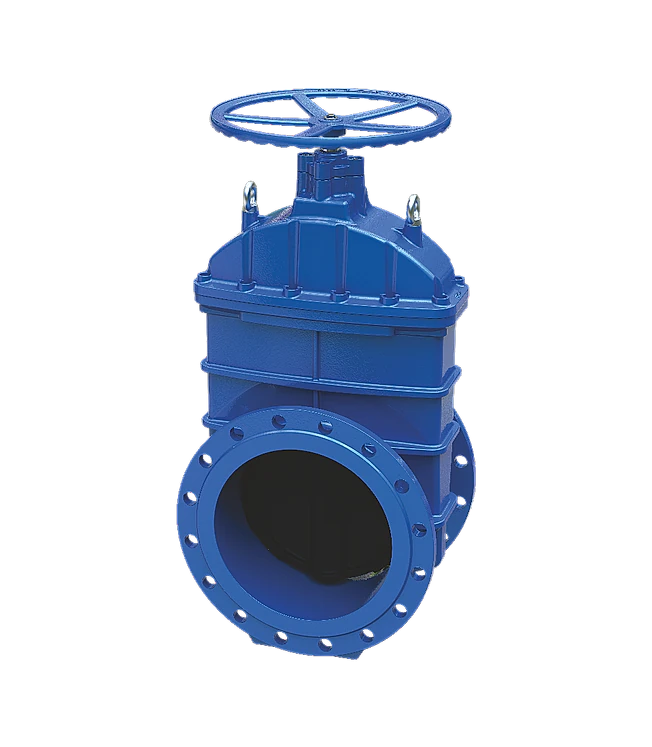

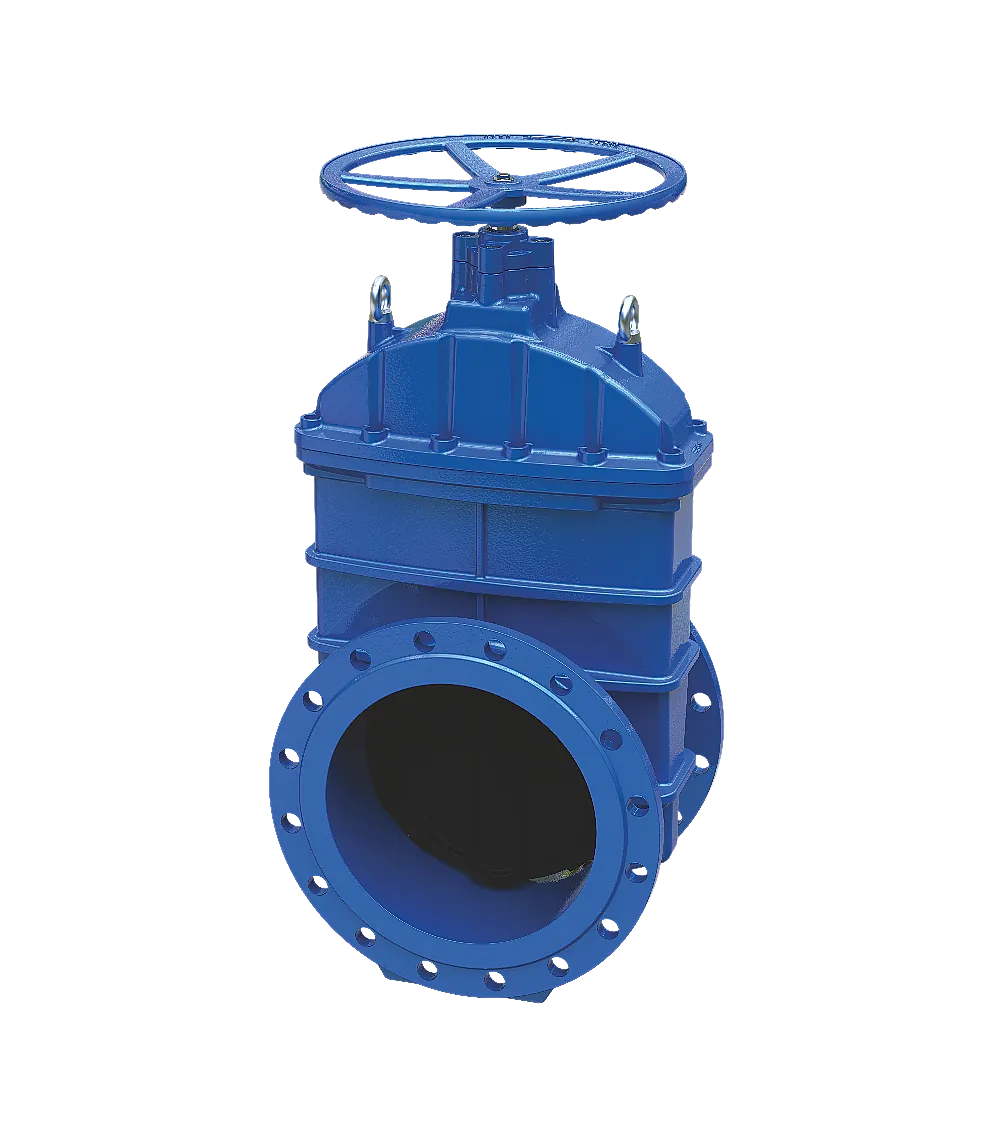

The AVM Resilient Seated Gate Valve is a computer-optimised, streamlined design for low head-loss. It is designed for various applications, such as water, sewage, industry, desalination etc., and exceeds the requirements of the applicable standards.
Specifications:
Size range: DN 50 - DN 1600
Working pressure: PN 10 - PN 25
Design standards: BS 5163, EN 1074, DIN 3352,
SABS 664/665, AWWA C509/515
Face-to-face: EN 558 Series 3, 4 & 5,
SABS 664/665, AWWA C509/515
Medium: Water, Sewage, Saline Water,
Desalination, Irrigation
Features:
- Gate fully encapsulated with EPDM or NBR rubber
- Low head-loss, full bore
- Low torque requirements
- Face-to-face BS 5163, EN558 Series 3, 4 and 5, AWWA C509/515.
- Flanged ends to EN1092 PN10 to PN25 and ANSI B16.5 Class 125 to 250.
- Zero leakage Class A to EN12266
- Powder epoxy coating with drinking water certificate
