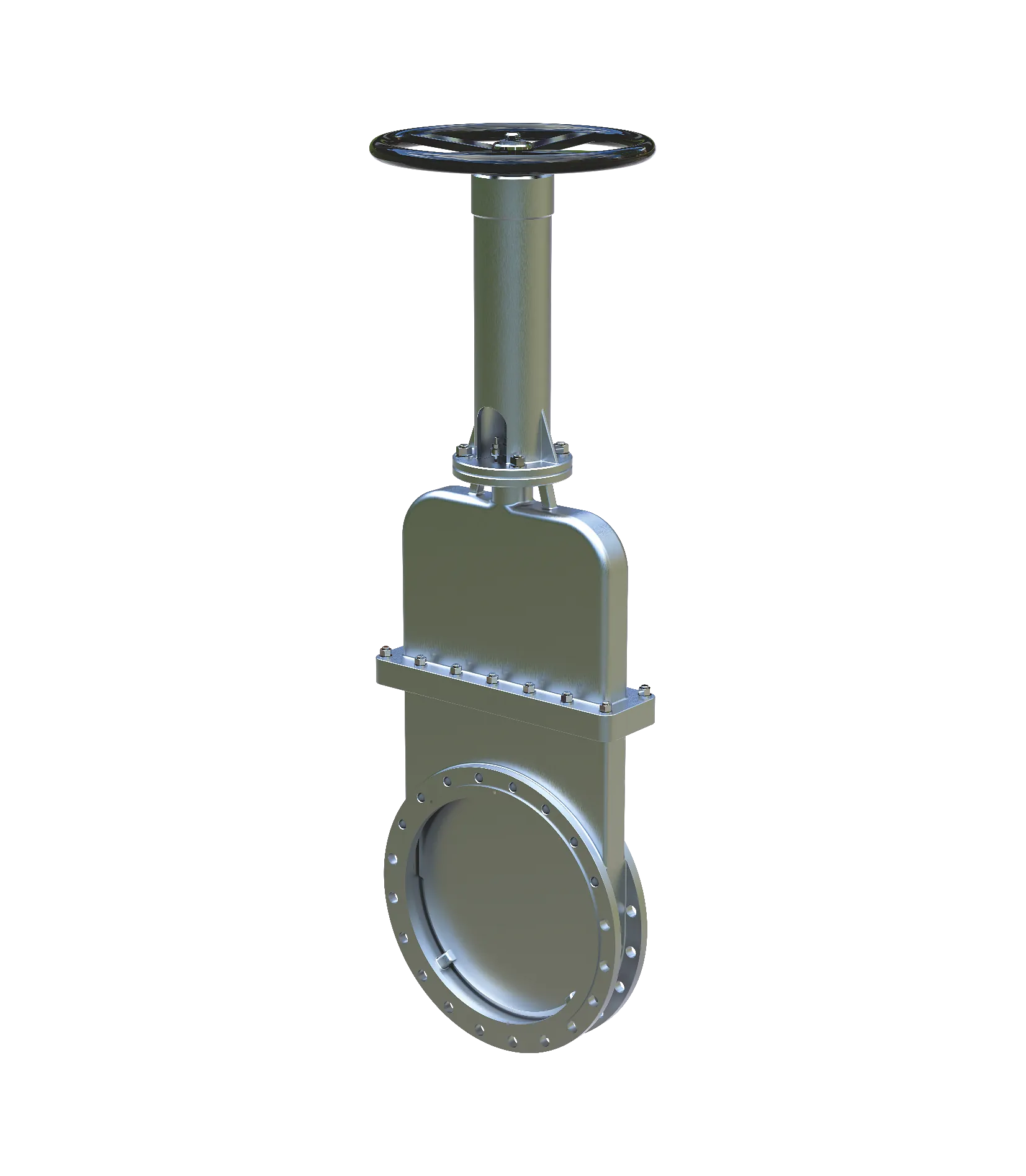

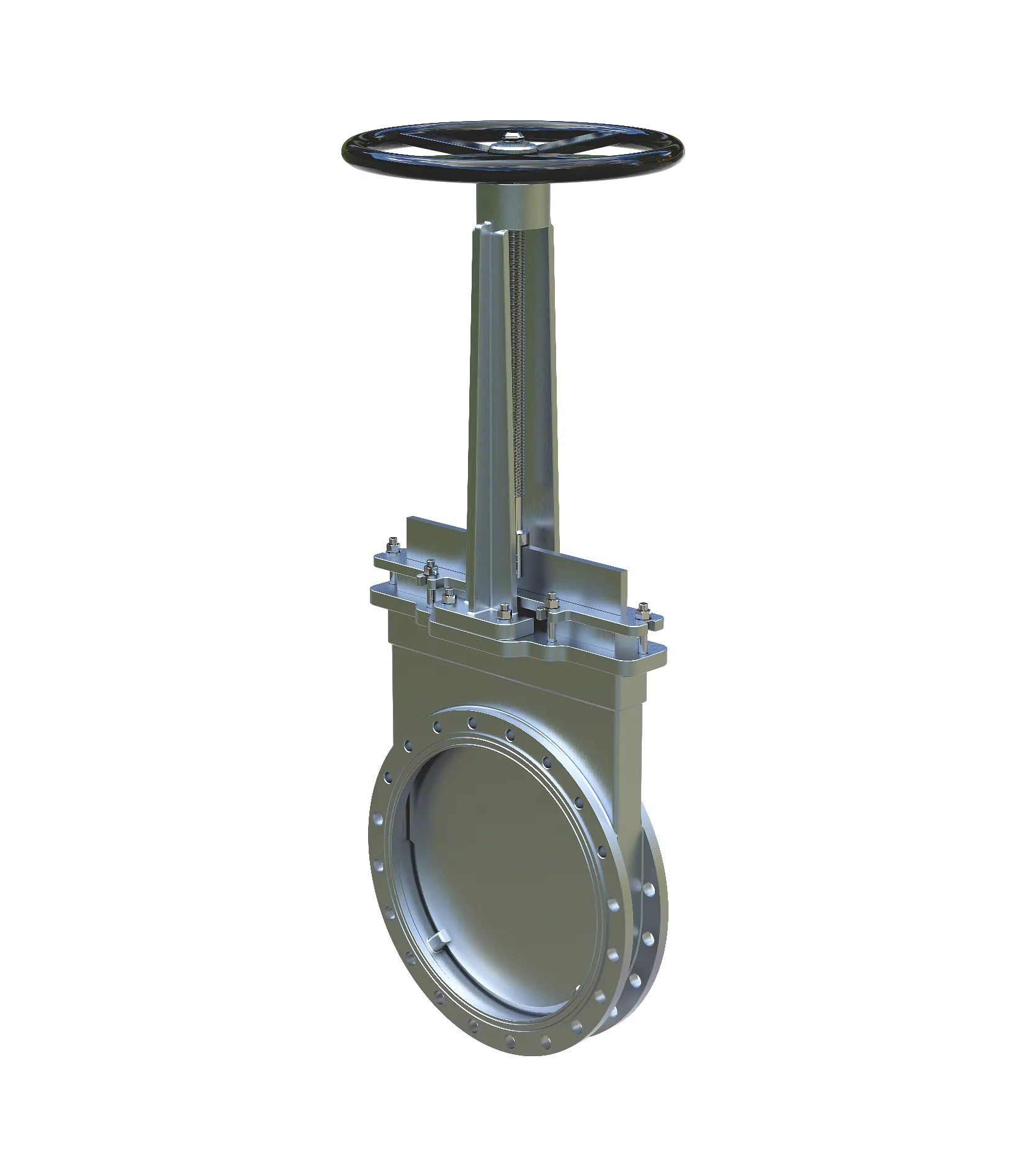

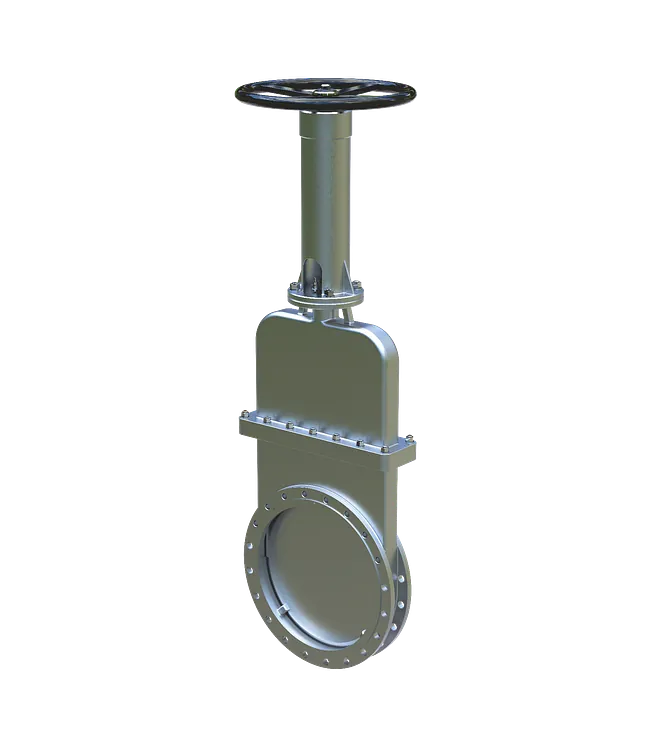

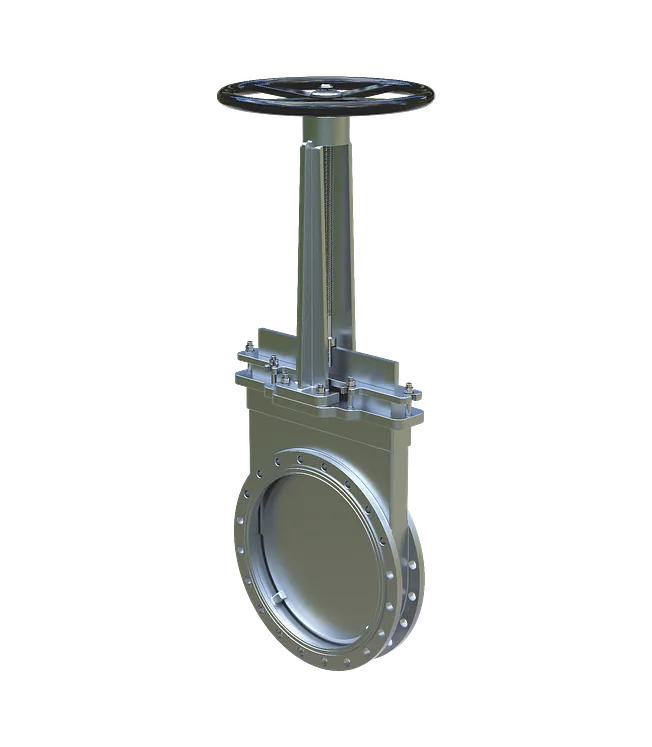

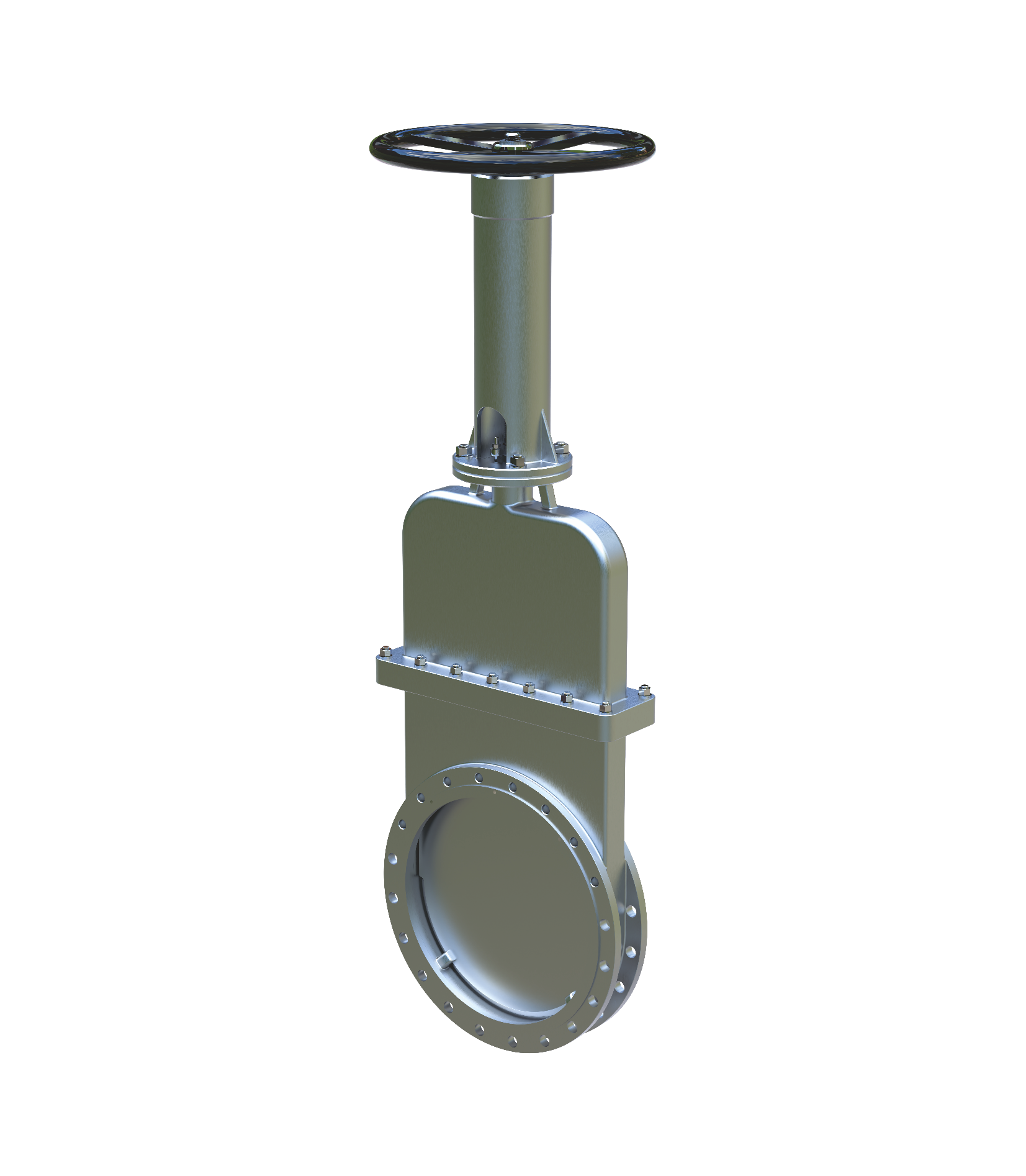

Knife Gate Valves
The AVM Knife Gate Valve is a computer-optimised, streamlined design. It is designed for the water & sewage industry and for various industrial applications.
Specifications:
Size Range: DN 50 - DN 2000
Working pressure: PN 2 - PN 16
Design standards: EN 1074, MSS SP81
Medium: Water, Sewage, Industry
Features
- Bonnetless or Bonneted Design with Wafer, Lug or Monoflanged connection.
- Face-to-Face to MSS SP81
- Body in WCB or GGG-50, option for Stainless Steel, Duplex, Super Duplex etc.
- Gate in 304SS (CF8), 316SS (CF8M), 304L (CF3), 316L (CF3M), 904L, High Temperature Steel, Duplex (DIN 2205) or Super Duplex (DIN 2507)
- Soft seat of EPDM, NBR, VITON, PTFE or Metal seat 13%Cr, Bronze, Stellite
- Non-rising or rising spindle of stainless steel 420SS, 431SS, 304SS, 316SS, 304L, 316L, Duplex, Super Duplex
- Handwheel, Gearbox, Electric, Hydraulic or Pneumatic operation
- Special designs available:
1. Rubberlined, PU lined or Ceramic lined
2. Slurry version for mining
3. Through Conduit version
