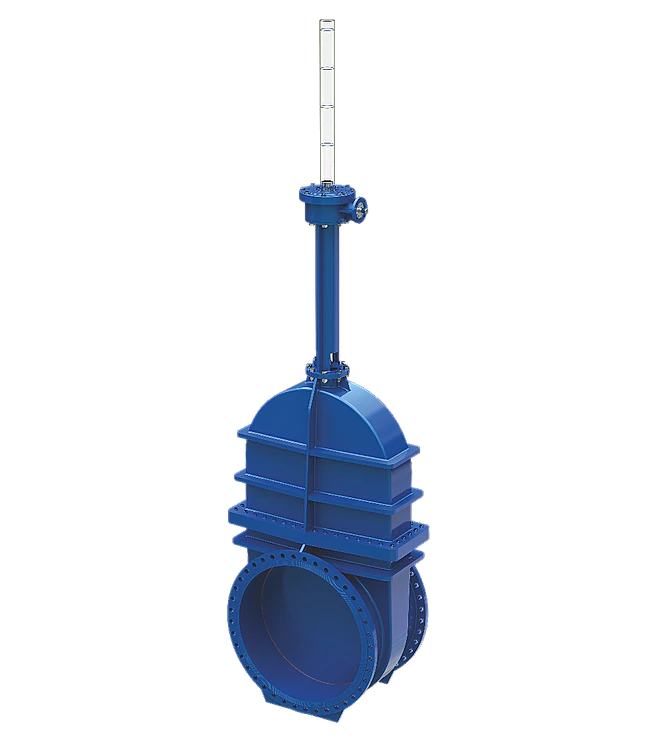

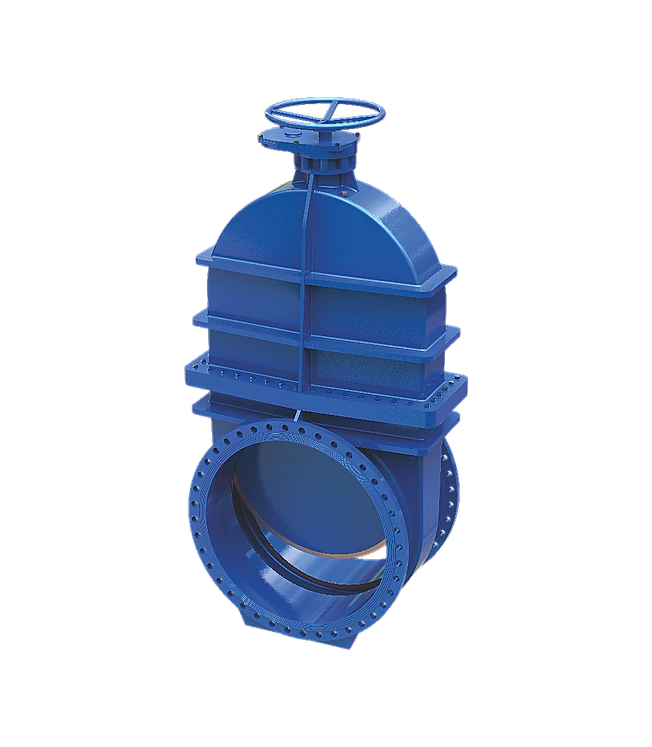

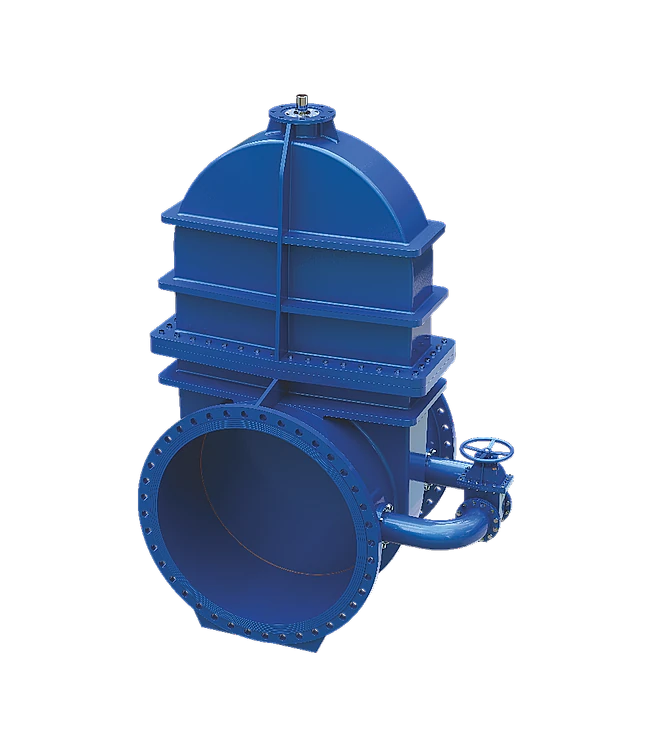

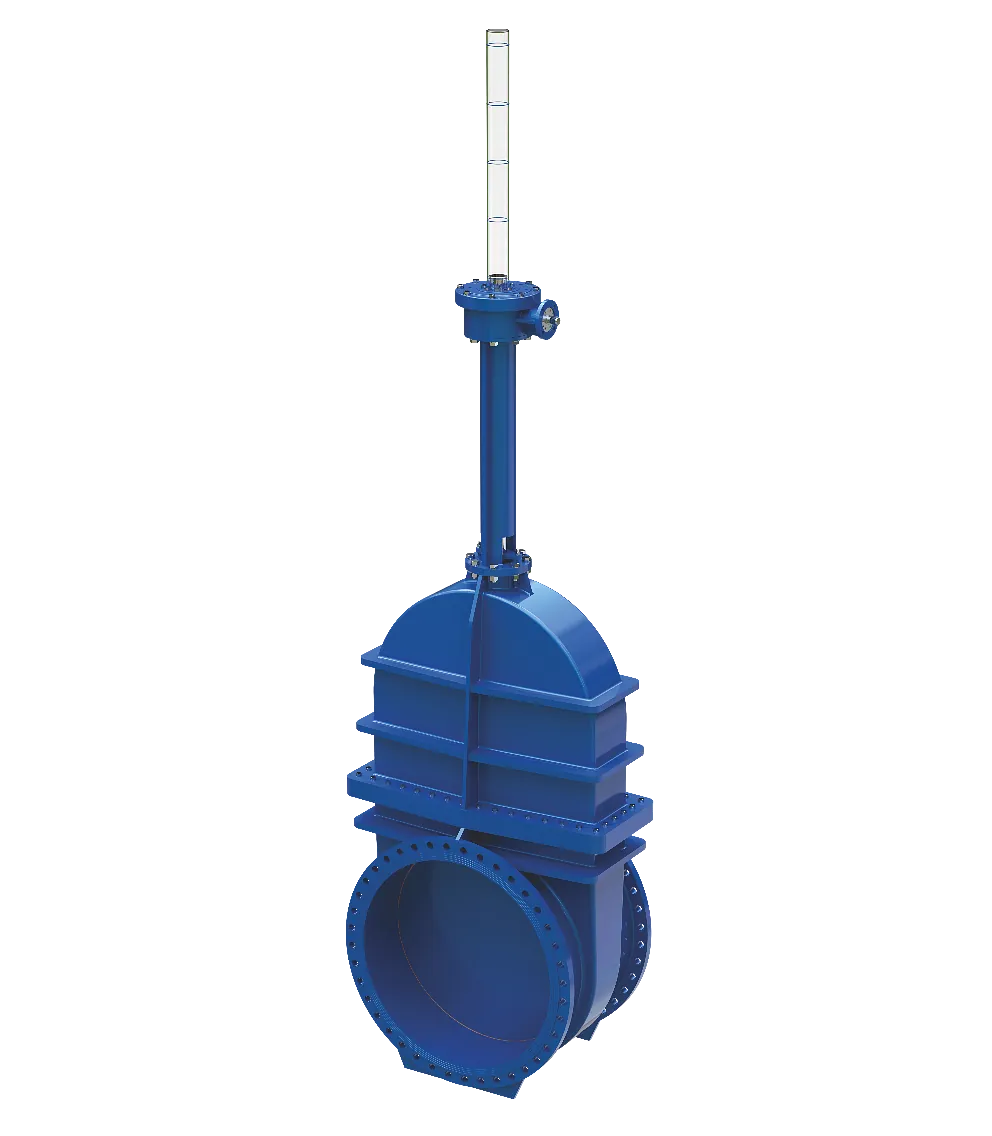

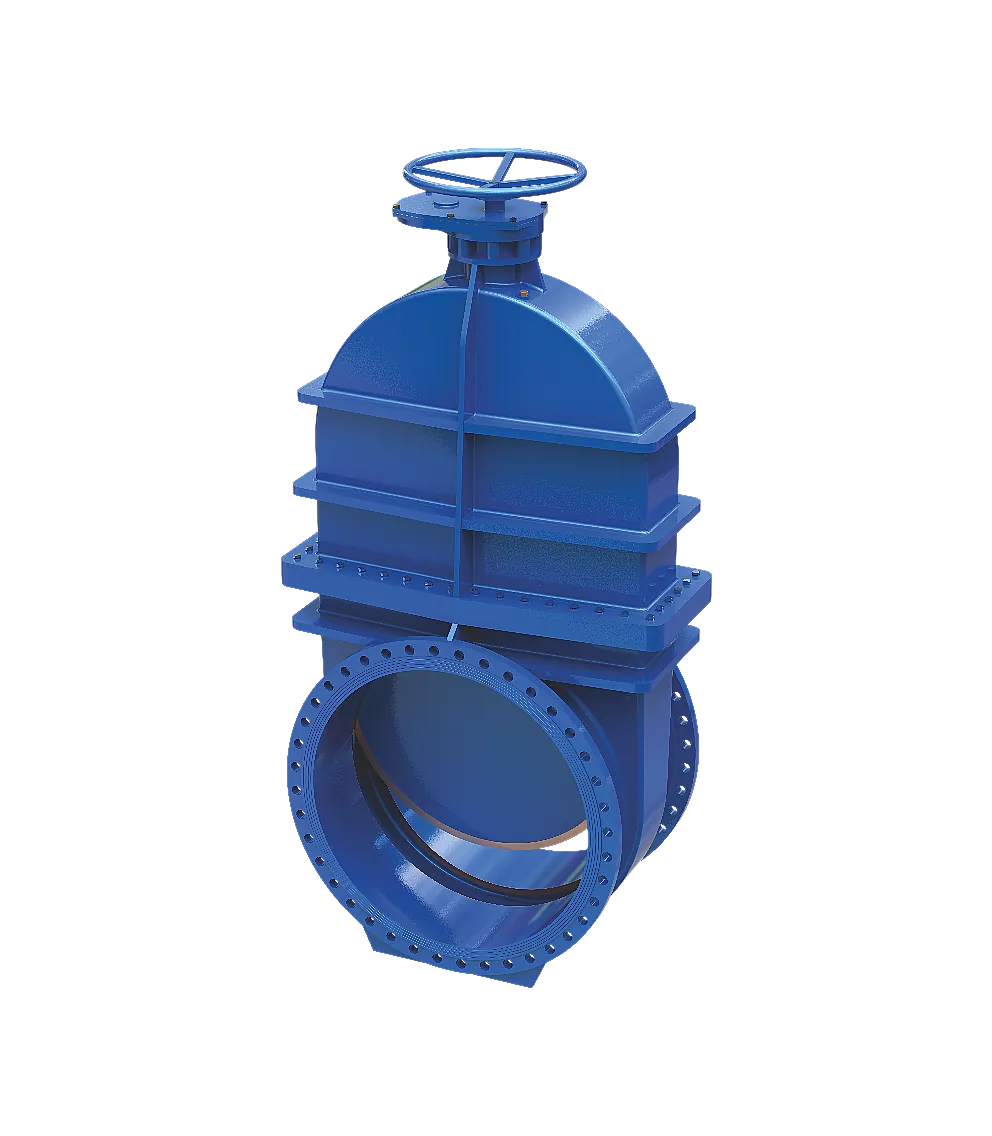

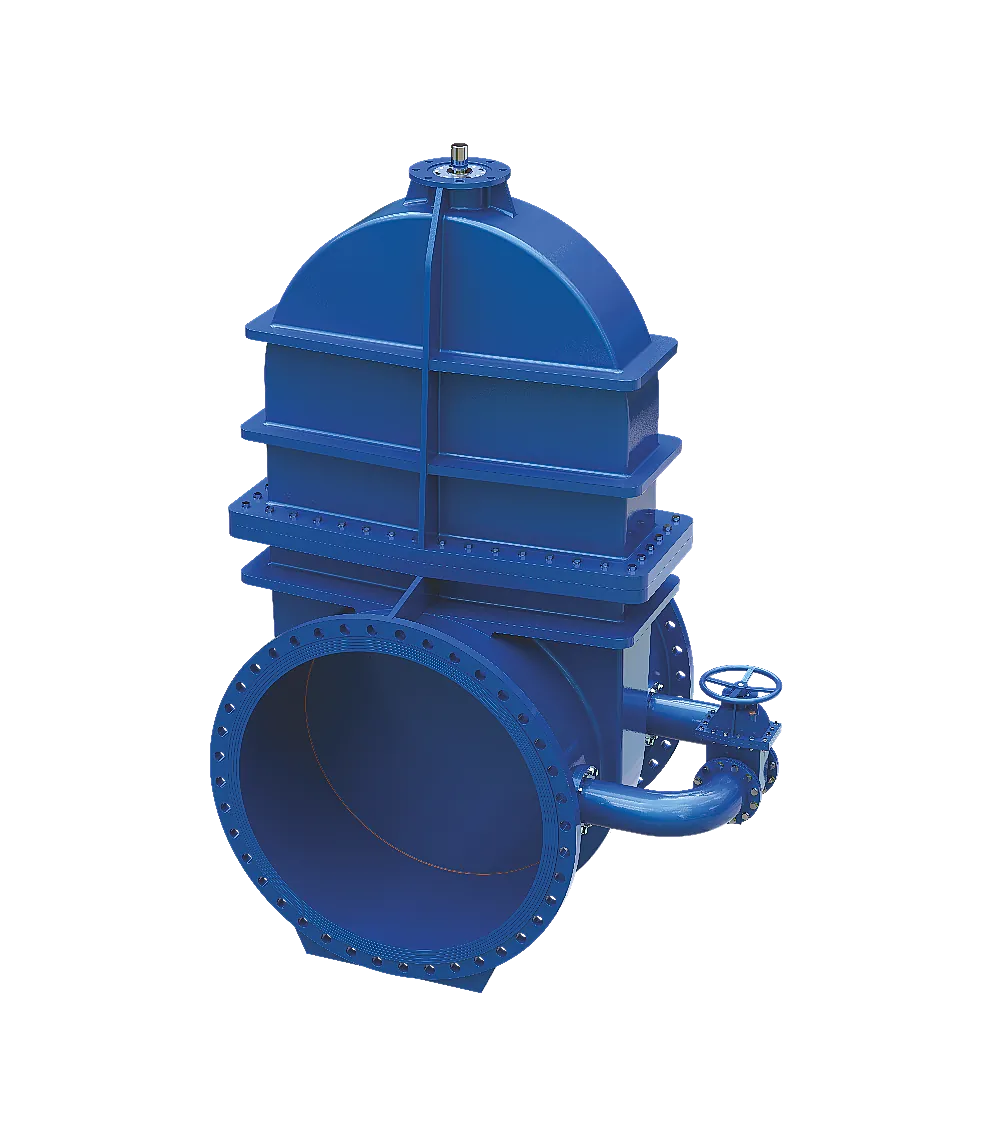

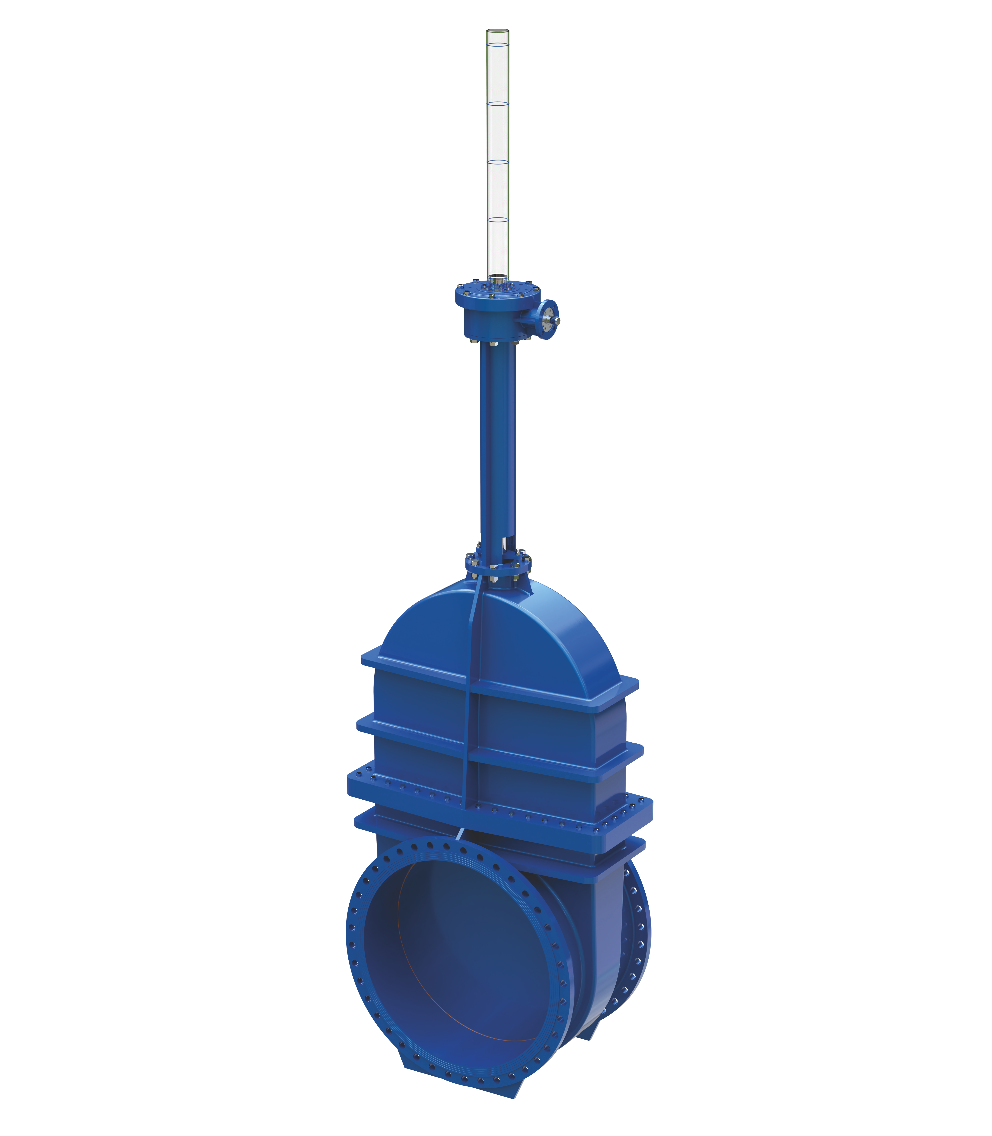

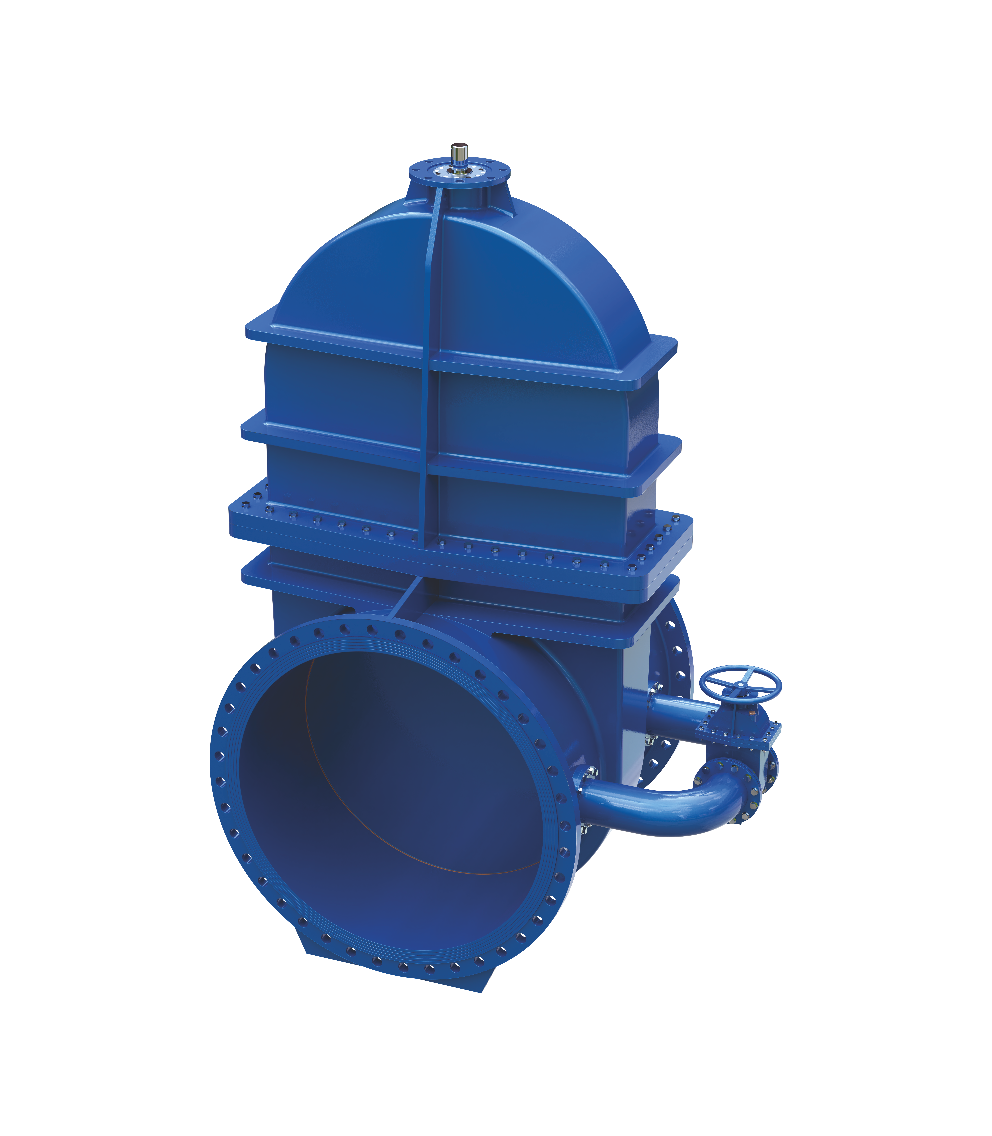

Metal Seated Gate Valves

In stock

The AVM Metal Seated Gate Valve is a computer optimised streamlined design for low head loss. It is designed for the water and sewage industry.

Specifications

Size Range: DN 50 - DN 2000
Working pressure: PN 10 - PN 40
Medium: Water, Sewage

Features

  • Full-bore design
  • Low Head Loss
  • Low torque requirements
  • Weld-on overlay body and disc seats
  • Back-seating facility; enables change of stem seals while under pressure
  • Flanged ends to EN 1092-2 PN 10 to PN 40 or ANSI Class 125, 250 or 300
  • Chevron packing as stem seal for DN 200 and up as standard
  • Accurate side guides ensure smooth and safe operation.
  • Aereation and drain taps
  • ISO 5210 top-flange is standard from DN 350 and up
  • Powder epoxy coating with drinking water certificate
