Nozzle Check Valves
The AVM Nozzle Check Valve is a computer-optimised, streamlined design for lowest possible head-loss. It is designed for the water industry first of all, taking into account the best available technology, exceeding the requirements of EN 1074.
Specifications:
Size Range: DN 80 - DN 2200
Working pressure: PN 10 - PN 40
Design standards: EN 1074
Medium: Water, Power, Industry,
Desalination, Oil & Gas
Features:
- Non-slam closure
- Compact and light-weight
- Low pressure loss for the valve type
- Metal-to-metal seats
- Maintenance free
- Flanged ends to EN 1092-2 PN 10 to PN 40 or ANSI B16.5 Class 125, 250 or 300
- Powder epoxy coating with drinking water certificate
- Options for face-to-face and versions:

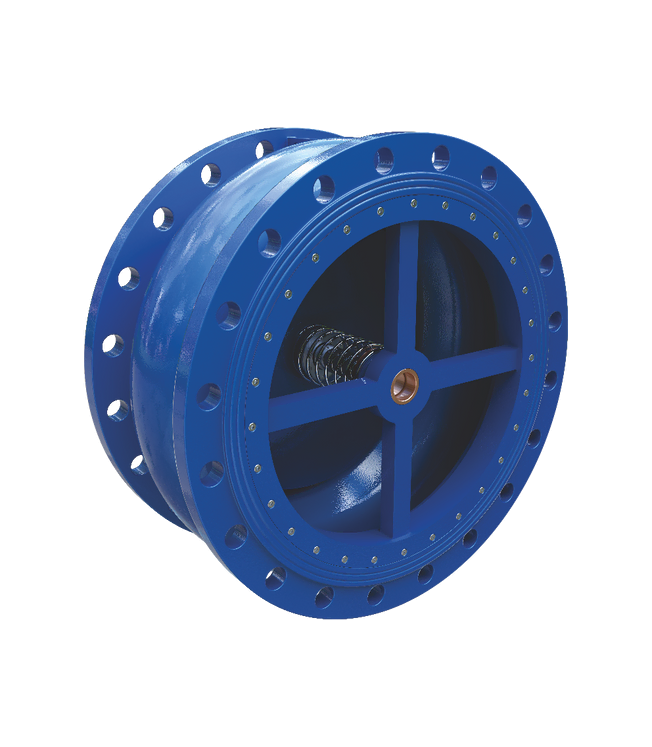

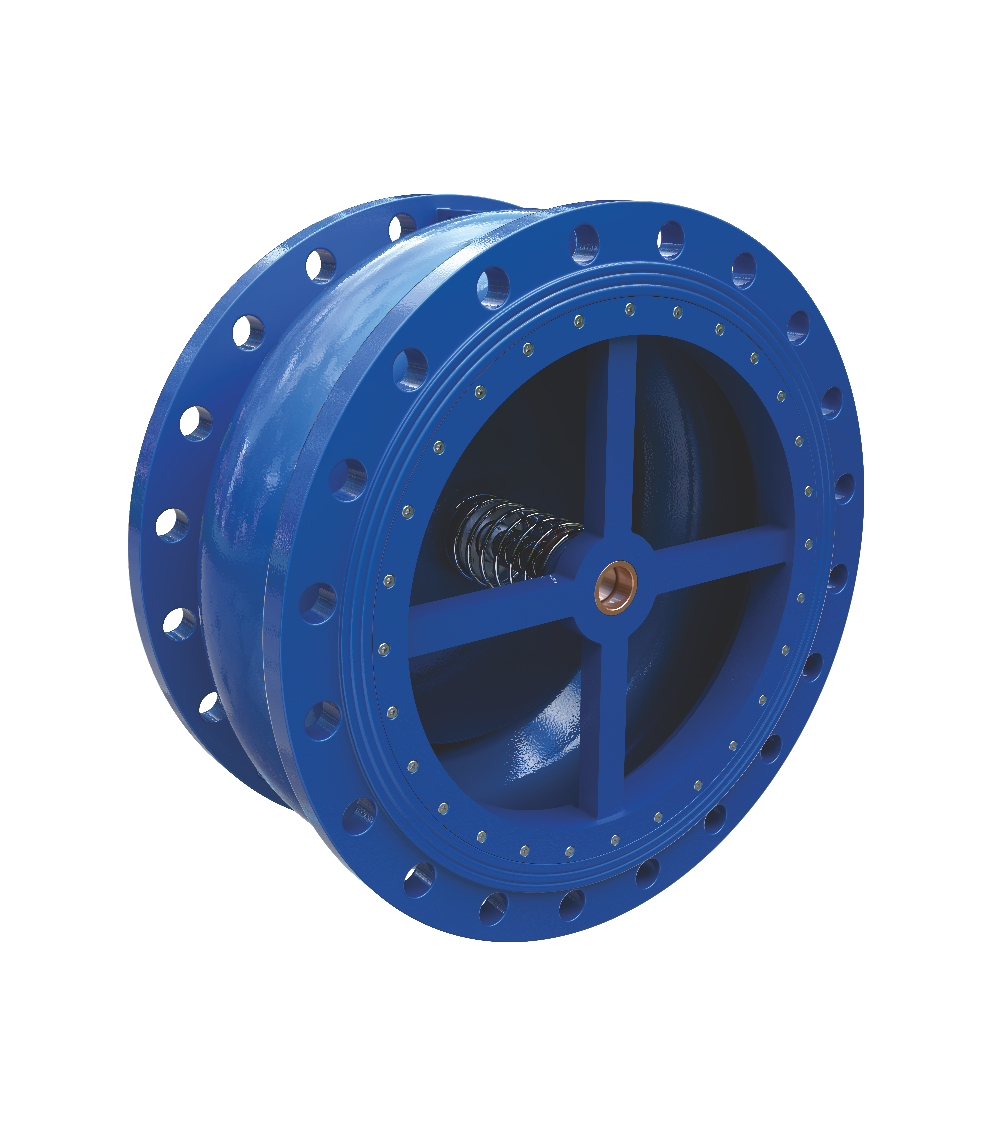

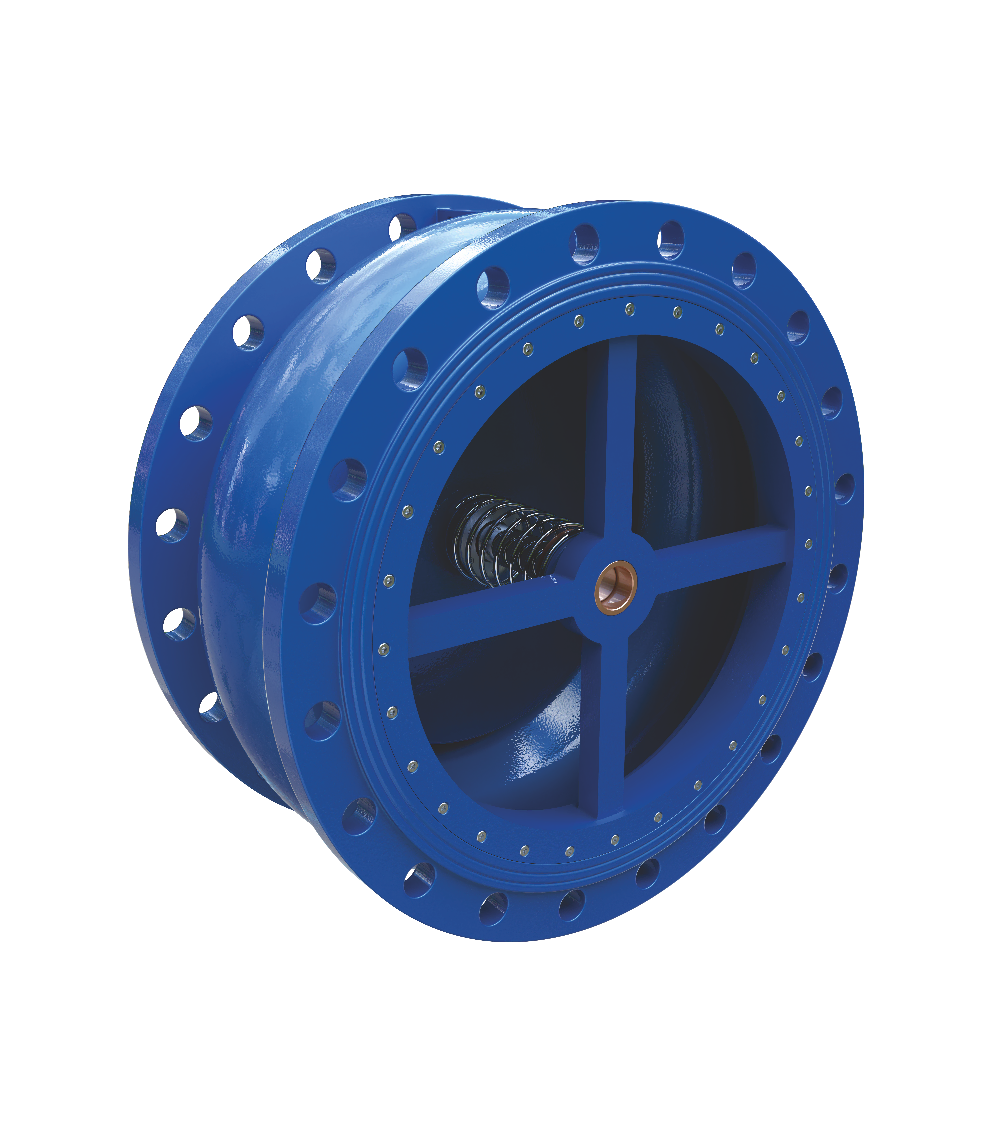

- Silent type

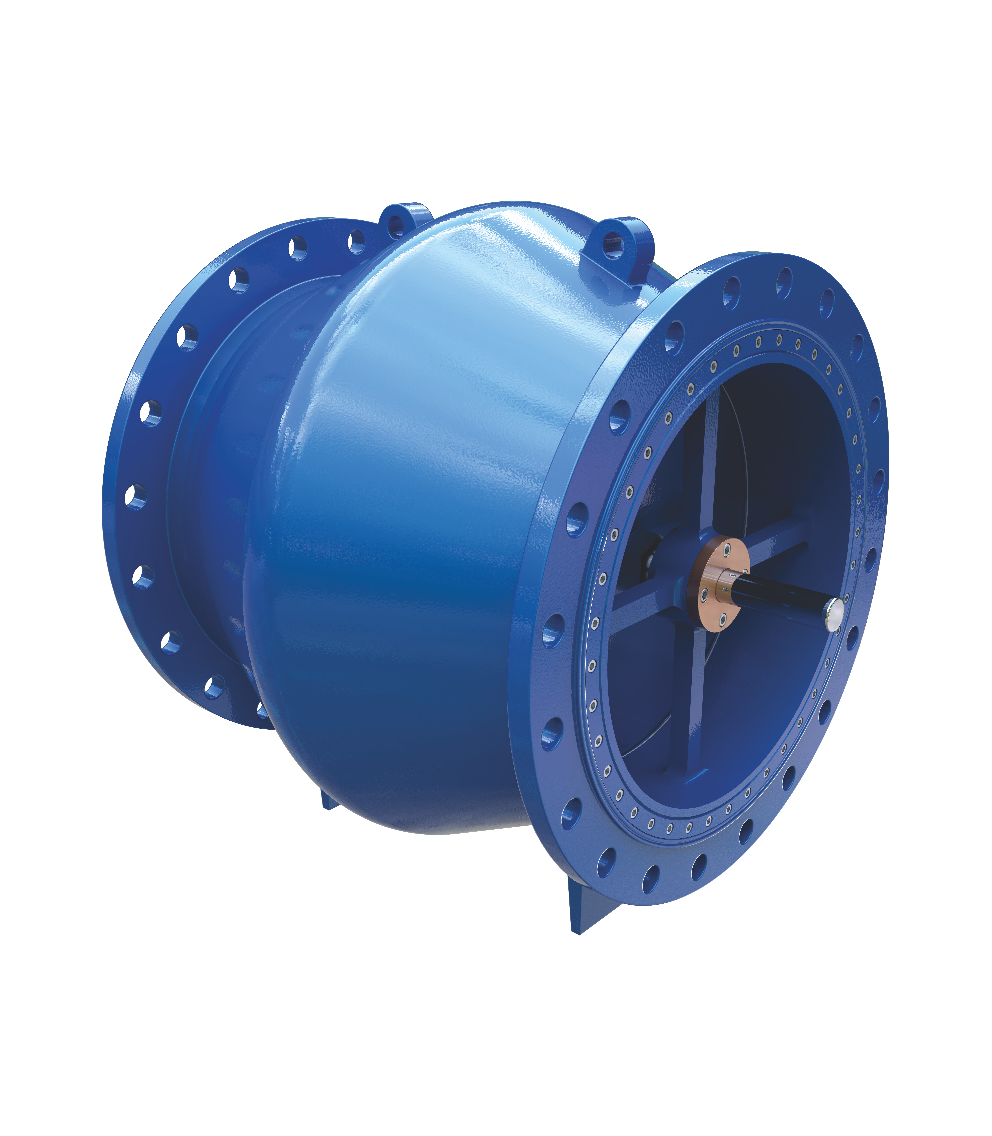

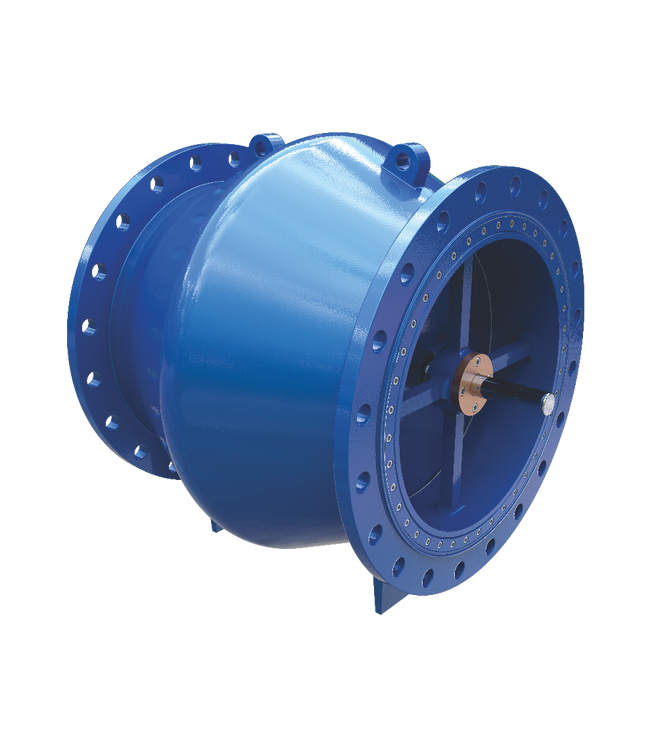

- Venturi type

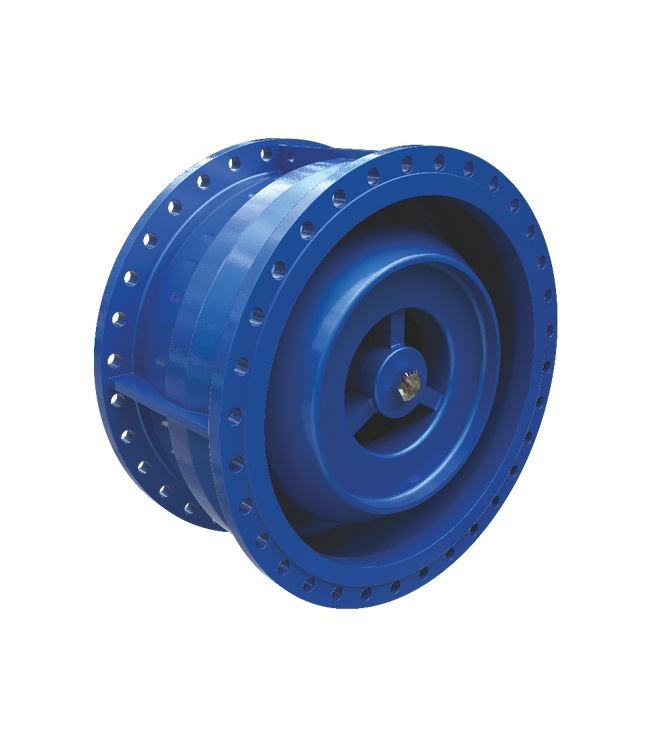

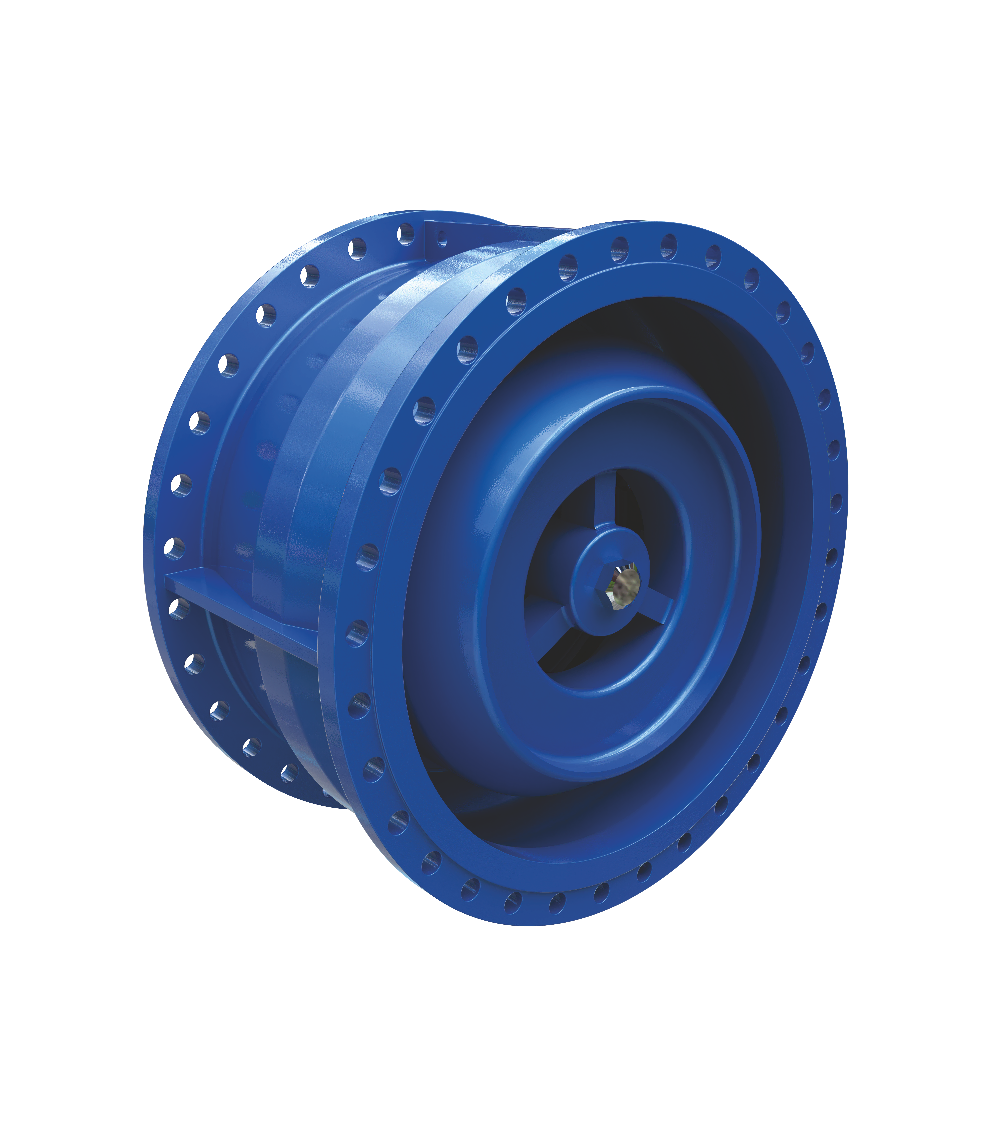

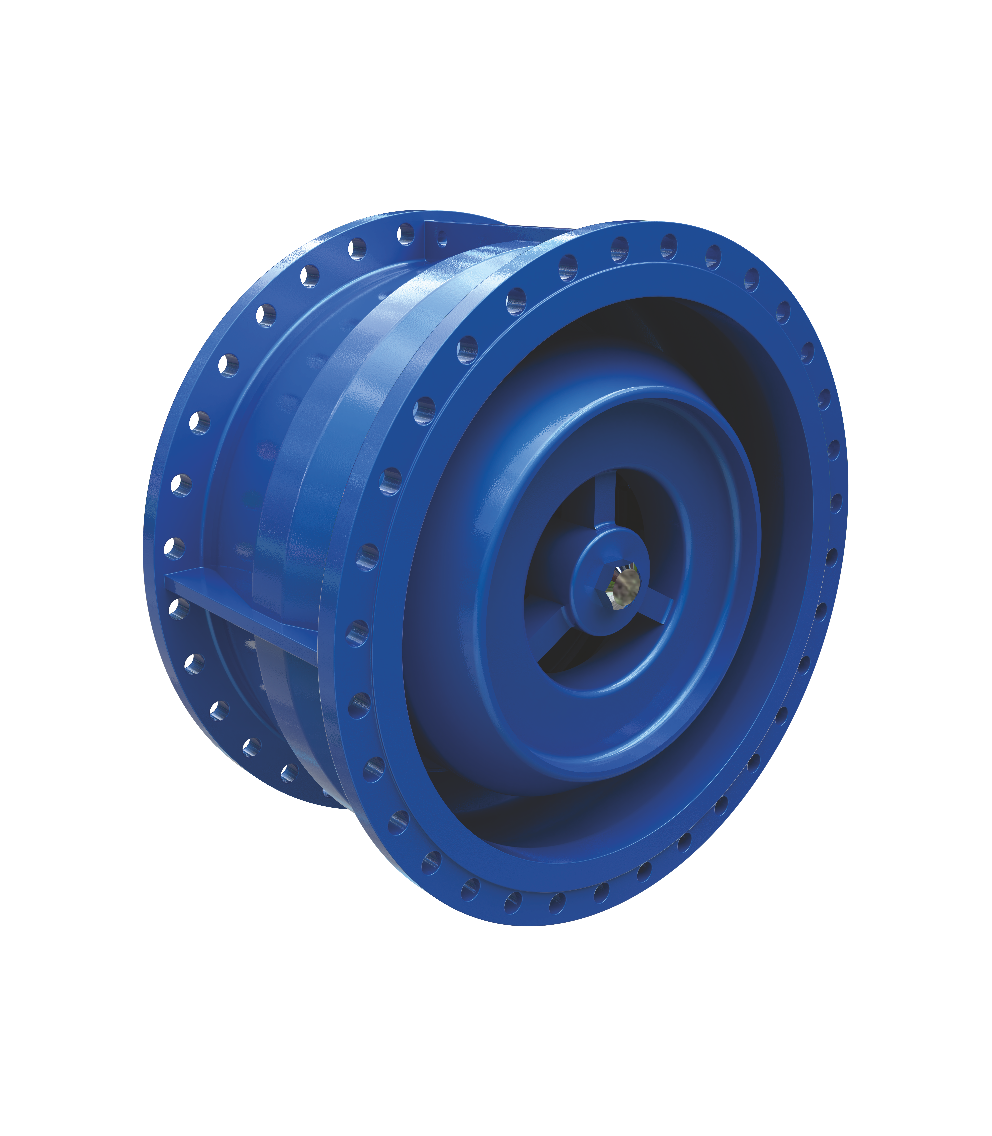

- Ring type

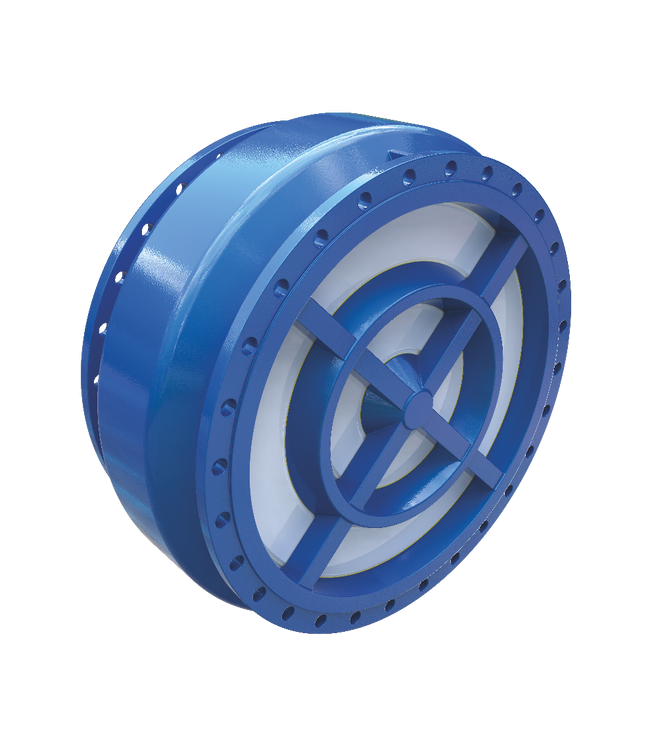

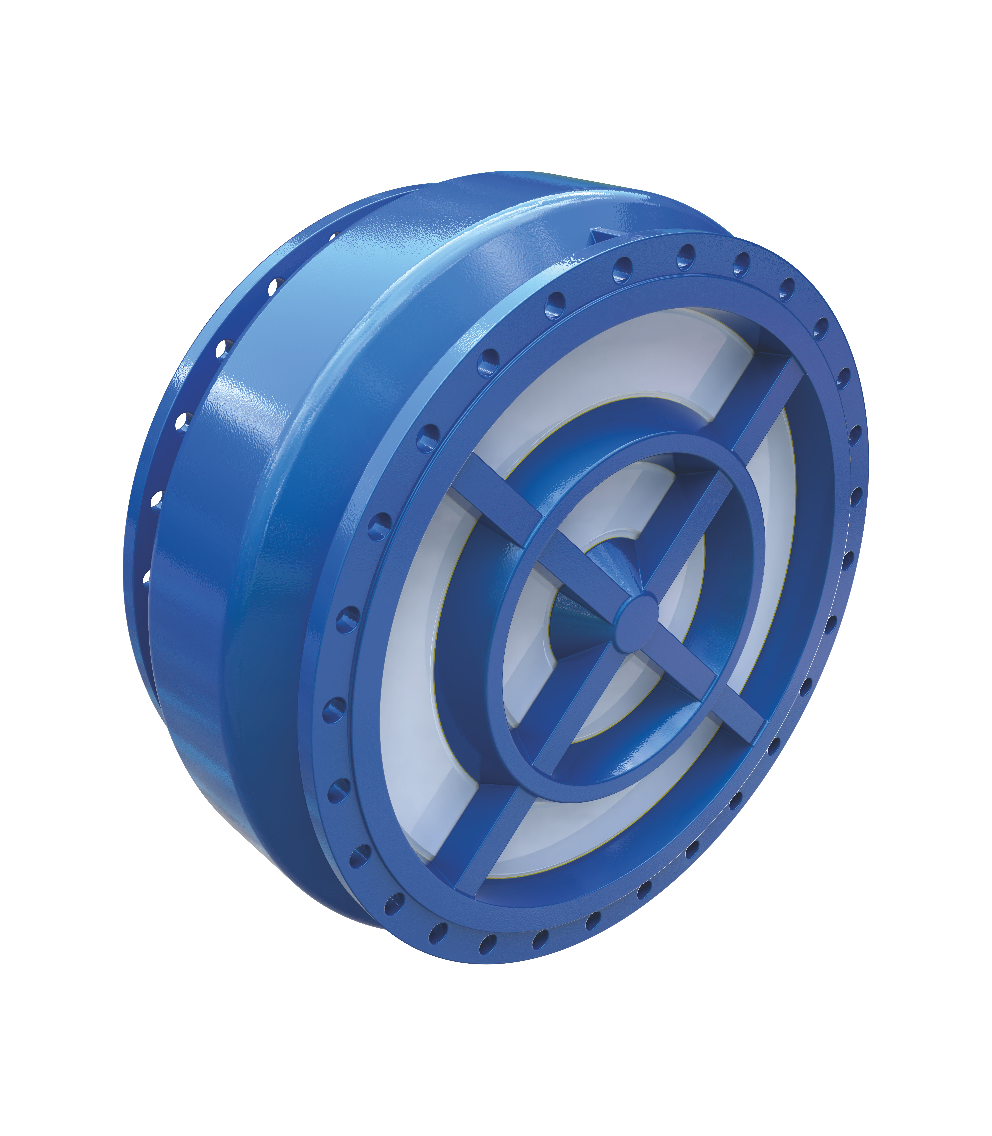

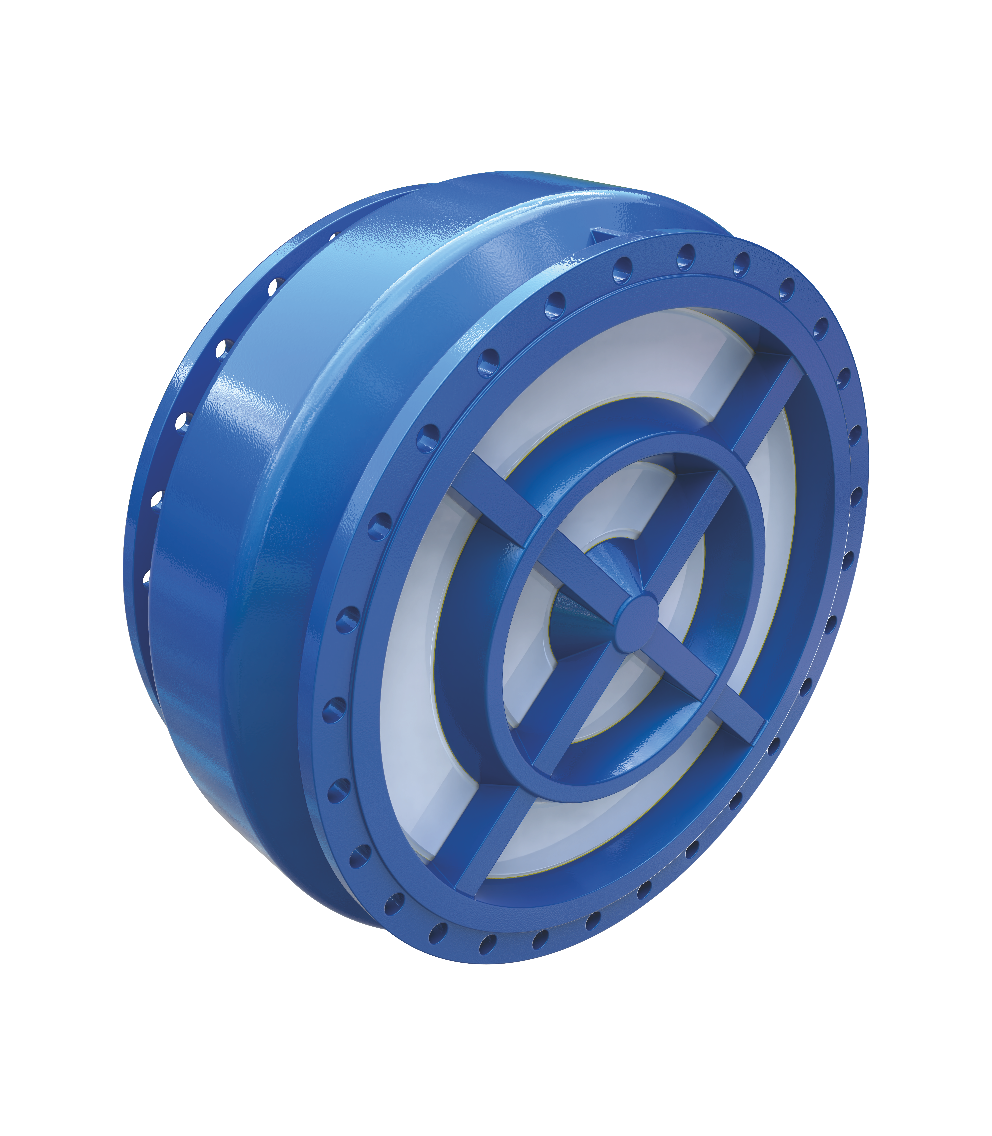

- Light Disc type (with HD-PE disc)
- Full option of materials: Ductile iron, Steel, Stainless steels, Duplex, Super-Duplex etc.
