Nozzle Check Valves for Desalination

In stock

The AVM Nozzle Check Valve for Desalination is a computer-optimised, streamlined design for lowest possible head-loss. It is designed for the water industry first of all, taking into account the best available technology, exceeding the requirements of EN 1074.

Specifications:

Size Range:             DN 80 - DN 2200
Working pressure:  PN 10 - PN 40
Design standards:  EN 1074
Medium:                   Saline Water



Features:

  • Non-slam closure
  • Compact and light-weight
  • Low pressure loss for the valve type
  • Metal-to-metal seats
  • Maintenance free
  • Flanged ends to EN 1092-2 PN 10 to PN 40 or ANSI B16.5 Class 125, 250 or 300
  • Options for face-to-face and versions:

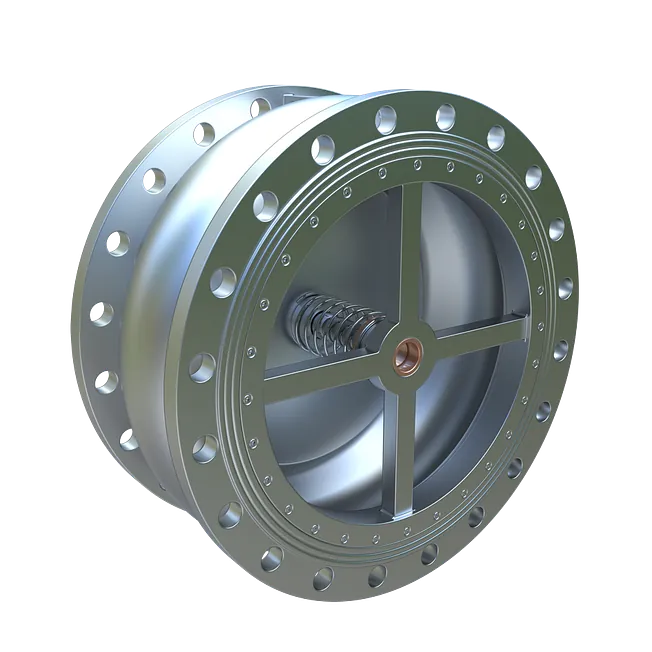

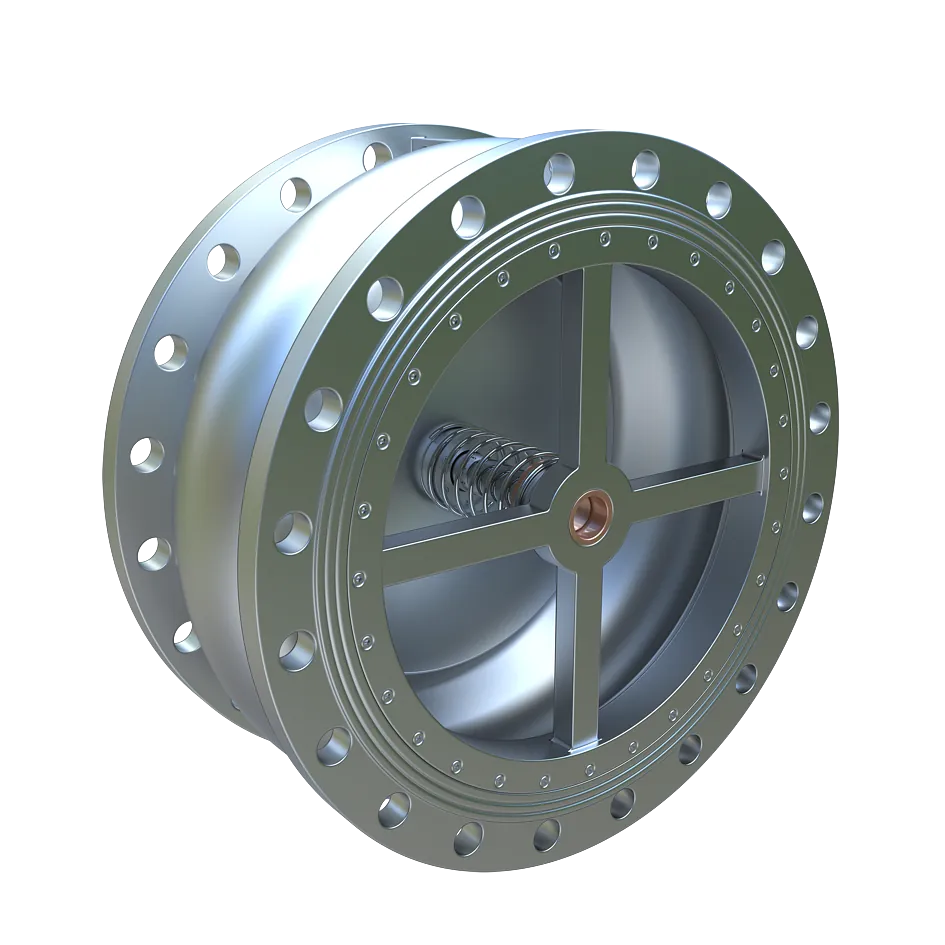

  1. Silent type

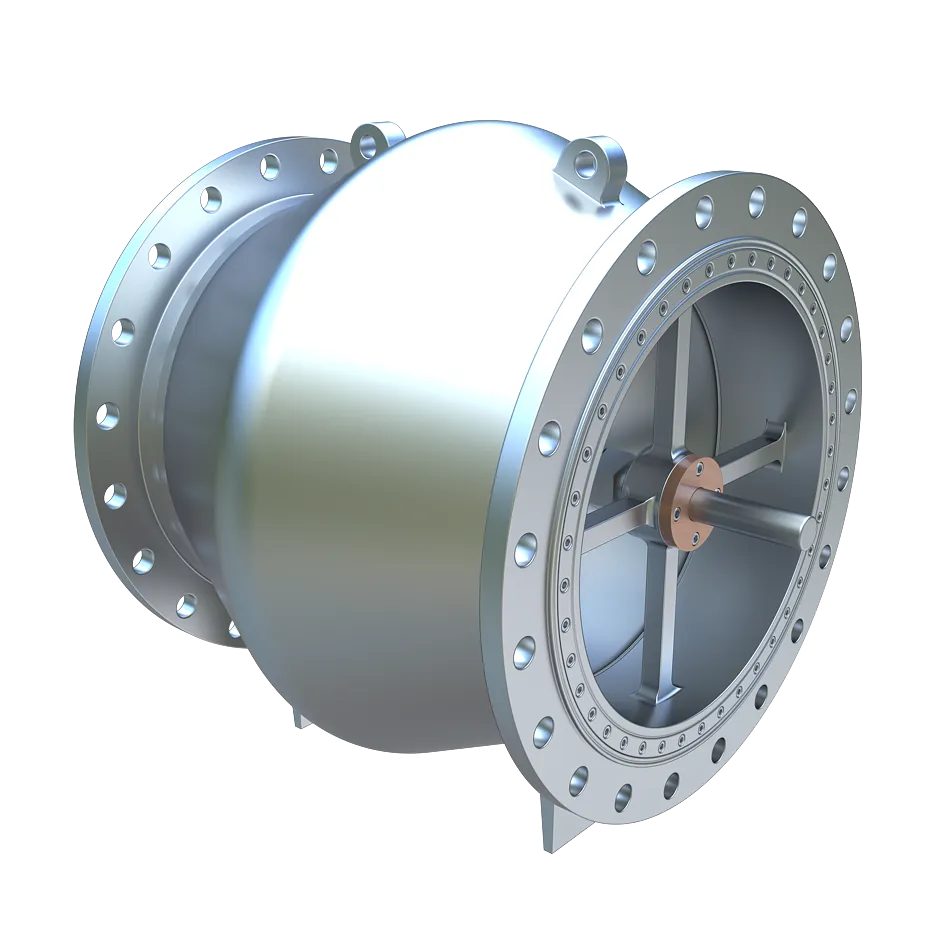

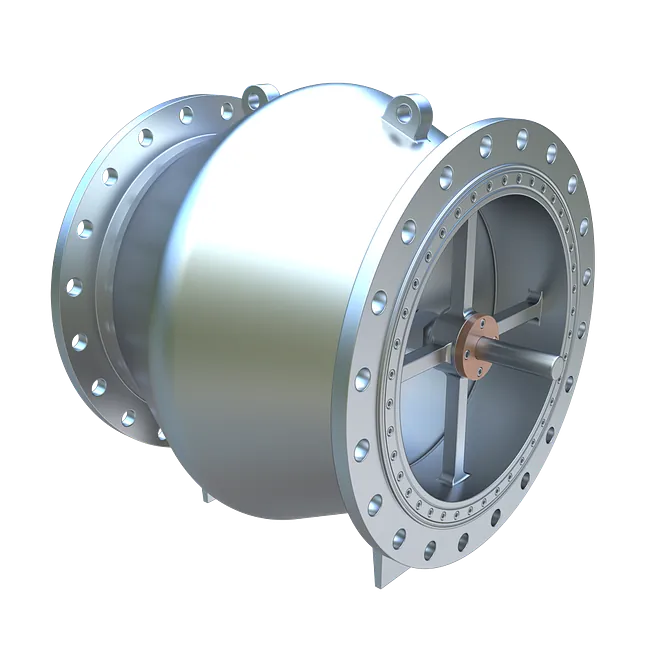

  2. Venturi type
  • Body and Disc of Duplex or Super-Duplex



Downloads:

English: AVM Nozzle Check Valve
Deutsch: AVM Düsenrückschlagventil
Español: AVM Válvula Check Tobera
