Submerged Discharge Valves

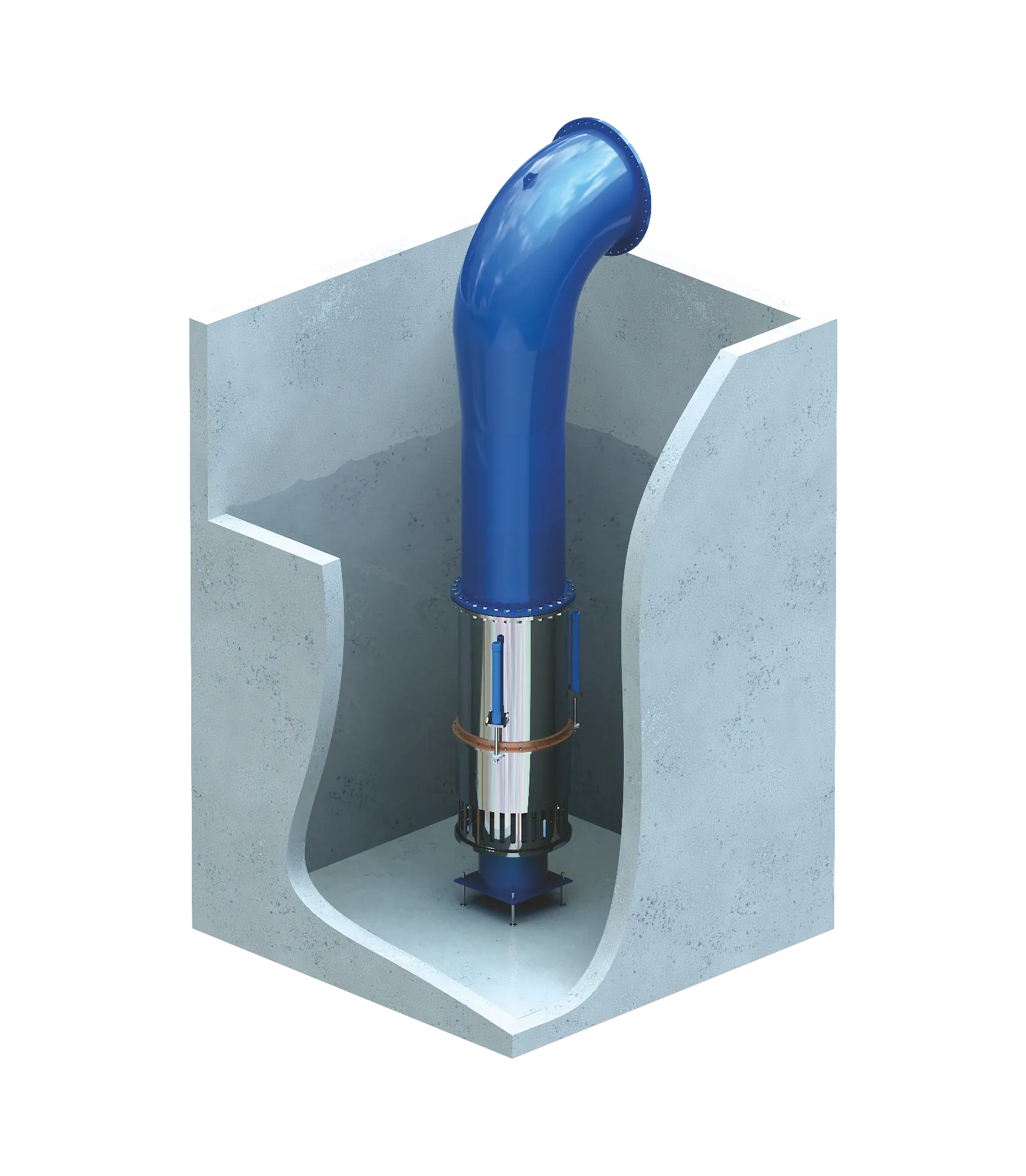

The AVM Submerged Discharge Valve is a computer-optimised, streamlined design, tailor made to suit the site conditions. The Submerged Discharge Valve is designed for discharge of water into a water pool.
Specifications:
Size Range: DN 200 - DN 2000
Working pressure: PN 10 - PN 25
Design standards: EN 1074
Medium: Water
Features
- Light and compact design. Cost effective in purchase and economical in use
- Design is almost maintenance free
- Smaller installation space required, compared with other submerged discharge valve types
- Flow regulation is linear
- Valve is drop tight when closed. Valve seals with low leakage even if seal is damaged
- Also available as a fully stainless steel valve
- Also available with fully stainless steel cylinders
- Available for high pressures
- Valve is hydraulically operated, no problems with mechanical gearing
