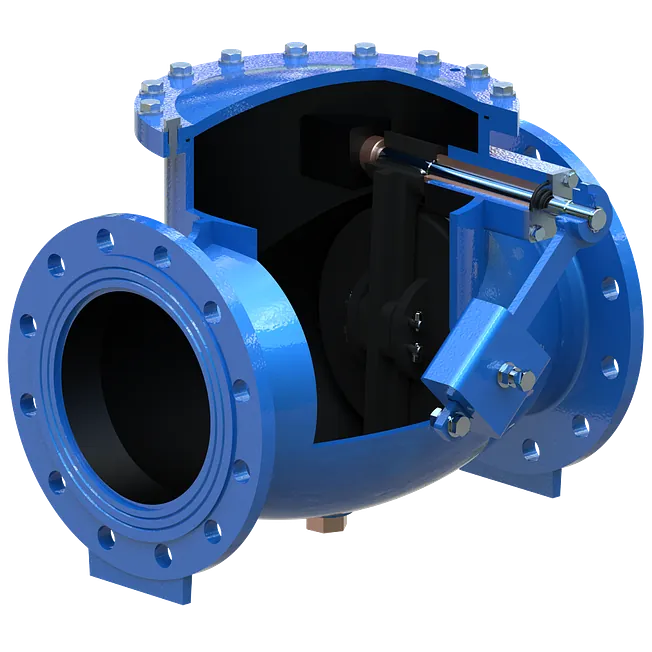

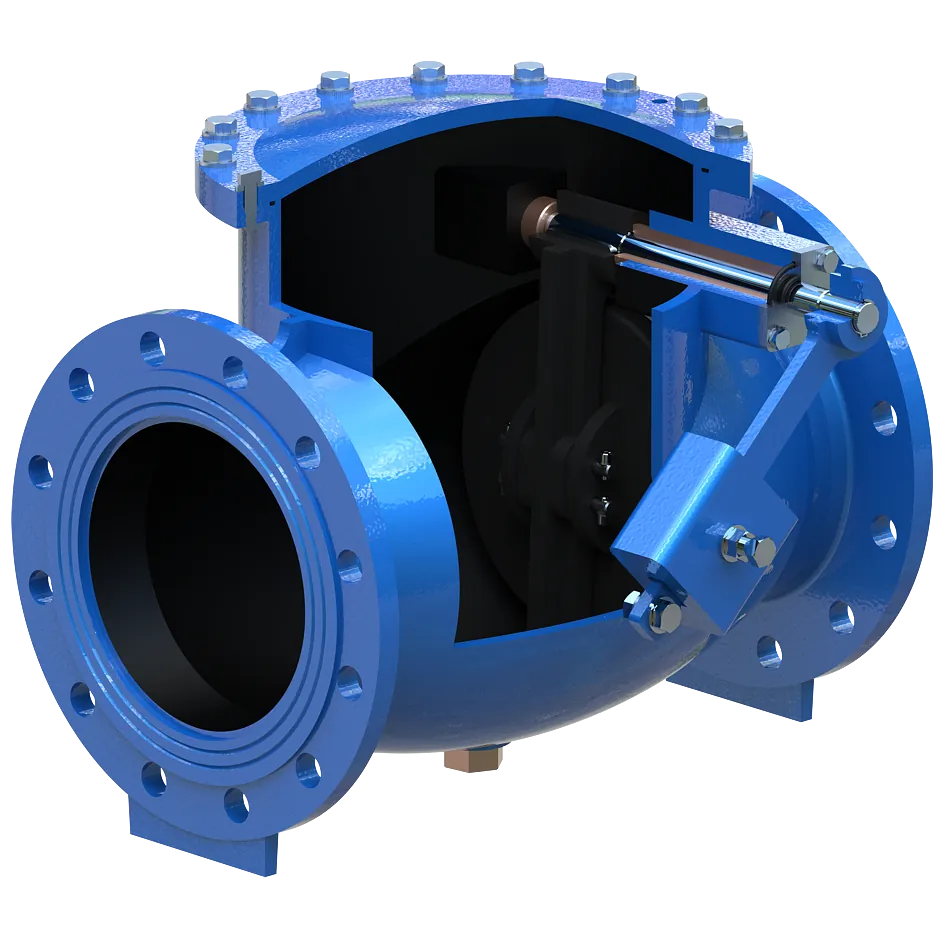

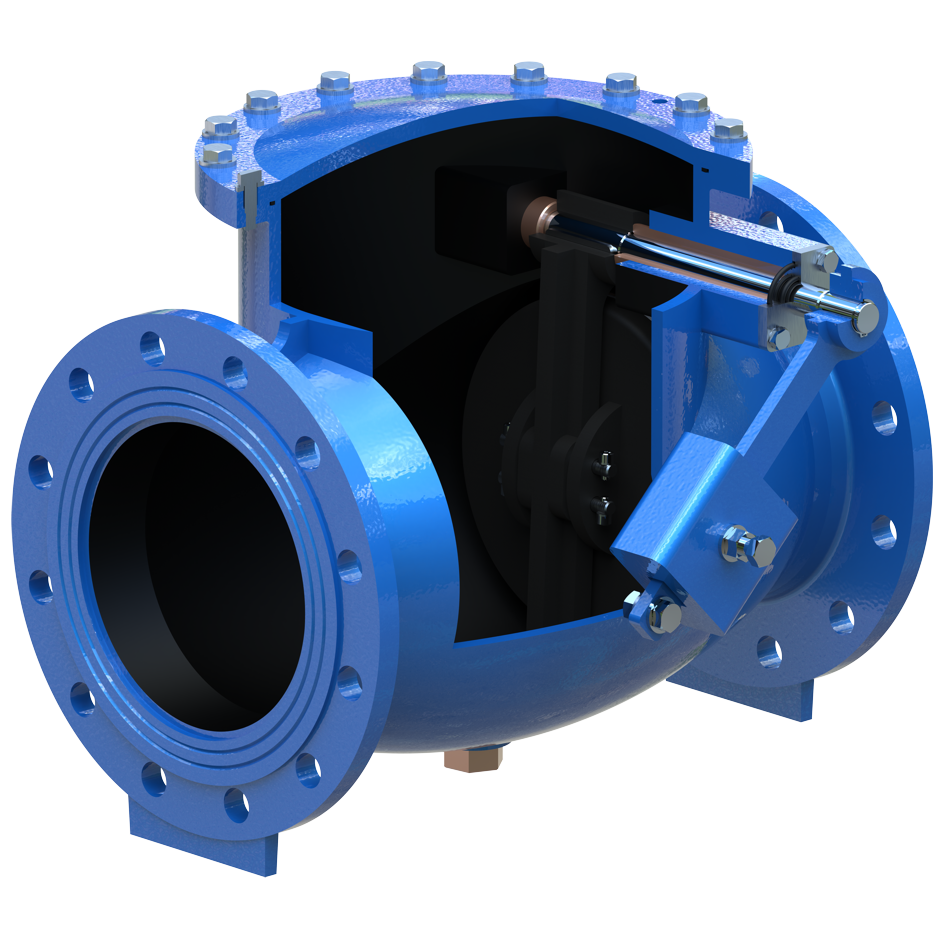

Swing Check Valves for Desalination
The AVM Swing-Check Valve for Desalination is a computer-optimised, streamlined design for low head-loss. It is designed for the water industry, taking into account the best available technology, exceeding the
requirements of EN 1074.
Specifications:
Size Range: DN 50 - DN 2000
Working pressure: PN 10 - PN 40
Design standards: EN 1074
Medium: Saline Water
Features
- Large, rugged design
- Full bore design and streamlined disc results in low head-loss
- Top cover for easy maintenance
- Flanged ends to EN 1092-2 PN 10 to PN 40 or ANSI B16.5 Class 125, 250 or 300
- Option for:
- Lever and weight

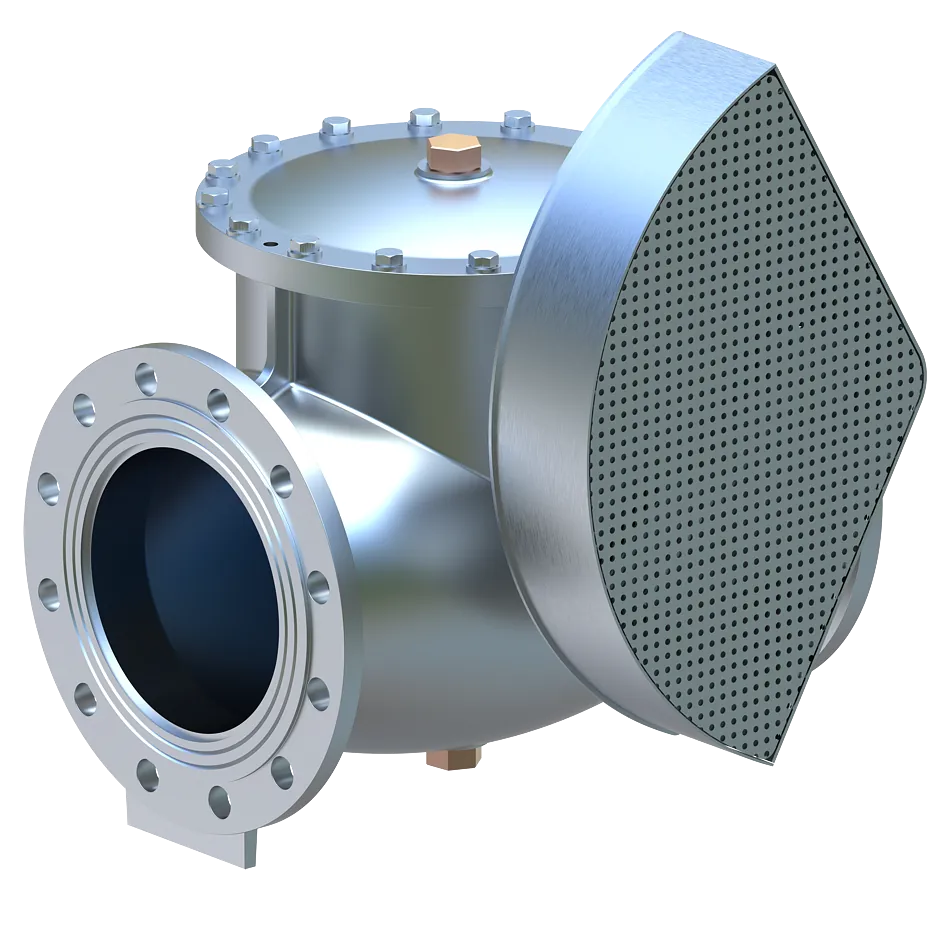

- Protection guard
- Limit switches
- By-pass system
- Bottom-mounted dashpot damper.
- Body and Disc are either of Duplex/Super Duplex or hard rubber lined
